2ft x 2ft 65W SMD5630 Square LED Panel Light

Total Power Consumption: 65Watt
Operating Voltage Range: 85V-265VAC
LED Type: 5630 SMD
LED Amount: 220pcs
Delivered Light Output: 5500LM
Color Temperature: Warm White 2800-3200K, Nature White 3900-4200K, Pure White 4700-5300K
CRI: Ra>80
Beam Angle: 120 degree
Dimmable: No
Material:Dia-casting Al+PC
Dimensions: 60cm(23.62")x 60cm(23.62") x 1.27cm(0.5")
Operating temperature range: -22°F to 122°F.
Lifetime: 50,000 hour
Warranty: 3 years.

LED Panel Light Installation Guide

Application:

• Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination.
• IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places.
• Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range.

NOTE

1. When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3. Installed in a well-ventilated place to ensure appropriate environmental temperature.
4. Using the led panel light, please check the local voltage compliance product requirements.
5. To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6. In case of failures, do not maintenance in private.

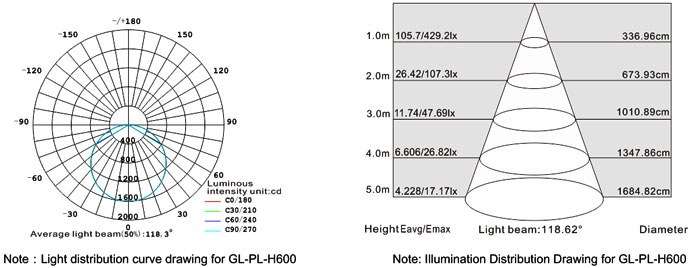

Fixture photometry

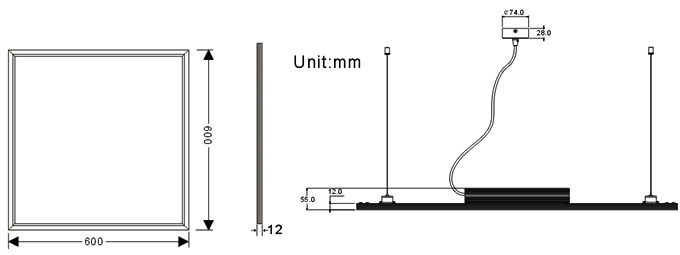

Dimension:
