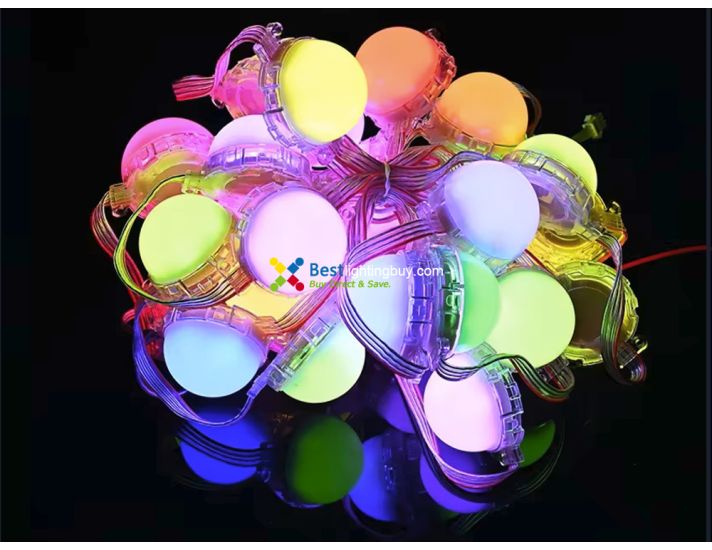

50mm GS8206 Programmable LED RGB Amusement Lighting Modules, 24V, String of 20

Working Voltage: DC24V
LED QTY: 7 pcs SMD5050 per module
LED Type: 5050 RGB SMD
Power per module: 1.68W
IC type: UCS2904 (similar protocol to WS2811)
LED view angle: 180 degree
Waterproof IP grade:IP67
Emitting Color: RGB
Brightness Level: 256 level
Dimension: 50mm in diameter
Fixed way: screw

The GS8206 pixel modules use dual signal wires, allowing the signal to seamlessly transfer. These ICs have a similar protocol as WS2811S but with the added feature of dual-signal wires. As a result, they can be controlled using the same WS2811/TM1804/UCS1903 controllers.

Key Features of the GS8206:

• High PWM Refresh Rate: The GS8206 boasts a PWM refresh rate of up to 8 kHz, allowing for smooth color transitions and making it suitable for filming with cameras operating at up to 267 frames per second.
• Built-in Gamma Correction: Equipped with a 12-bit gamma correction module, the GS8206 enhances color accuracy and provides smoother dimming curves, resulting in more precise and visually appealing lighting effects.
• Redundant Data Line: The IC features dual data lines, ensuring that if one data line fails, the other can maintain signal transmission. This redundancy enhances the reliability of the LED system, reducing the likelihood of complete strip failure.
• Internal Display Patterns: In the absence of an external control signal, the GS8206 can display built-in patterns, making it suitable for standalone applications without the need for a separate controller.
• Automatic Test Mode: Upon power-up, the GS8206 enters an automatic test mode, facilitating easy testing and verification of the LED setup during installation and maintenance.
