850nm InfraRed SMD5050 LED Flexible Strip, 60 LEDs/m, 5m, 12VDC
Length: 5meters (16.4feet)
LED QTY.: 300 pcs SMD5050 LEDs (Optional)
Input Voltage: 12VDC
Input Current: 6amp
Rated Power: 72Watt
Beam Angle: 120degree
PCB width : 10mm
Functions: 3-LED Cuttable
Lifespan: 50,000+hours
Waterproof: Non-waterproof, IP67Waterproof-Silicon Tube (optional)
Specification for 850nm IR Tri-Chip SMD5050 LED
|
Electrical/Optical Characteristics at TA=25℃ |
||||||
|
Symbol |
Parameter |
Device |
Test Conditions |
Min. |
Typ. |
Units |
|
λD |
Dominate Wavelength |
Infrared |
IF=3*20mA |
0 |
850 |
nm |
|
C |
Capacitance Infrared |
Infrared |
VF=0V;f=1MHZ |
|
110 |
PF |
|
VF |
Forward Voltage |
Infrared |
IF=3*20mA |
/ |
1.3 |
V |
|
IR |
Reverse Current |
All |
VR=5V |
/ |
5 |
uA |
|
Absolute Maximum Ratings at TA=25℃ |
||
|
Parameter |
Red |
Units |
|
Power dissipation |
81 |
mW |
|
Dc Forward Current |
30 |
mA |
|
Peak Forward Current 1 |
160 |
mA |
|
Reverse Voltage |
5 |
V |
|
Operating/Storage Temperature |
-40℃ TO +80℃ |
|
-
400-405nm Ultraviolet SMD5050 Flexible LED Strip, 60LEDs/M, 12VDCSpecial Price $145.00 Regular Price $170.00 -

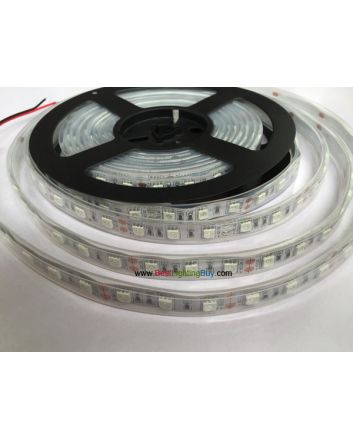

940nm Infrared SMD5050 Flexible LED Strip, 60 LEDs/m, 5m, 12VDCSpecial Price $107.00 Regular Price $134.00 -
