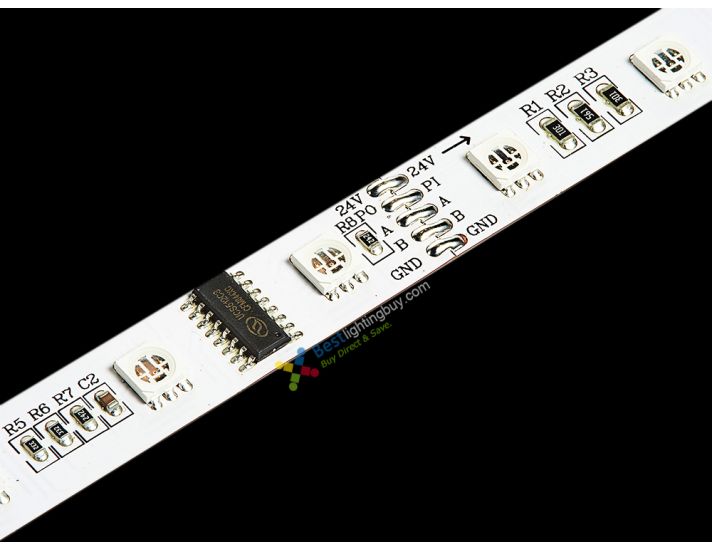

DMX512 RGB 5050 LED Light Strip, 60/m, 5m, 24V
10 UCS512 IC and 60 RGB SMD LEDs per meter
External UCS512A IC control, DMX512 to RS485 decoder embedded in IC. each six leds are programmable.
Standard DMX512 controller wired with our DMX512 led strip
100mm intervals cutting point
Both ends wired with 150mm/5.9" 20Awg wire and JST 5Pin male/female connector
Buying in Bulk: We offer competitive prices and volume discounts for customers needing to order large quantities. If you are interested in ordering items in bulk, please get in contact with us.
- Buy 5 for $99.50 each and save 9%
- Buy 10 for $95.50 each and save 13%
- Buy 30 for $89.50 each and save 18%
Driving IC: UCS512
Working voltage: 24V DC
Power consumption: 14.4W per meter
Working temperature: -40 ℃ ~ 60 ℃
LED number: 60 LEDs / meter
Color: Color: RGB
Finish: white
Waterproof: Nonwaterproof with 3M tape on the back, IP67 water resistant silicone sleeve
FPC Width: 12mm
Reel Length: 5 meters
Viewing angle: ≥120
Lifespan: MTBF≥50000h
24V RGB DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI:Write the address,one address cable
GND: connect to power supply GND & controller GND
| Product Model | ||||||||
| M/N | Voltage | Color | IC Driver | ICs (pixels)/m | LEDs/m | Cut Points | Dimensions | IP Rate |
| UCS512RGB-60-IP20 UCS512RGB-60-IP67 |
DC24V | RGB | UCS512 | 10 | 60 | Every 100.0mm | 1000*12*3.0mm 1000*14*4.0mm |
IP20 |
