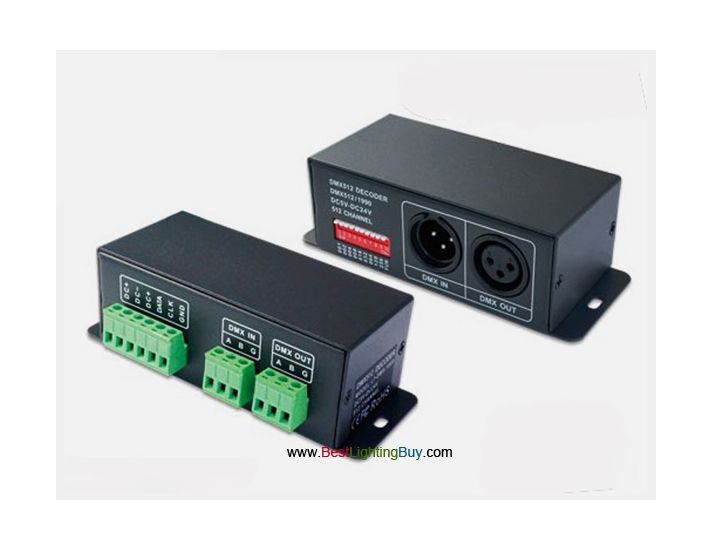

LPD6803 DMX512-SPI Decoder, Support LPD6803, LPD1101, D705, UCS6909, UCS6912 Driving IC
Input voltage: DC5V～DC24V
Input signal: DMX512
Compatible IC: LPD6803, LPD1101, D705, UCS6909, UCS6912 Driving IC
Decoder channels: 512 DMX CH/unit
DMX512 socket: XLR-3, Green terminal
Dimming range: 0~100%
DMX decoder works to convert universal DMX512 signal to SPI(TTL) signal. It can control LED lights based on PD6803/LPD1101/D705/D709/UCS6909/UCS6912/DX146 IC via DMX console. LPD6803, LPD1101, D705, D709, UCS6909, UCS6912, DX146 are the IC with grey scale processor. Automatically generate 32 scale levels and only need 2 signal cables, which convenient for design and installation for the LED lights. These 7 chips are widely used in LED digital lights among LED dot light, SMD strip, LED Fence tubes, LED wall light, LED pixel screen, LED Hi-Power spotlight , flood light, etc.
Check the detailed manual of this LPD6803 DMX-SPI Signal Decoder
