Flexible Silicone LED Neon Diffusers for LED Strips, Top/Side/Circular View, 5m

PCB Width: for 3/5/6/8/10/12/15/20 mm.
Working Voltage: for 5V/12V/24V lighting tape.
Sectional Dimensions: 30 kinds of size.
Working Temperature: -20~50 °C.
Protection Level: IP67 waterproof.
Luminous Surface: even light, no light spots, soft light.
Fixed Method: aluminum clip or plastic clip.

Each unit includes:
1 pcs 5m Neon profile ( As you choose )
2 pcs End caps (one with a hole, and the other without a hole)
15 pcs Fixed clips (For T0505/T0606/T1220-3SIDES, we don't have suitable Fixed Clips)
(Note: led strip are not included!)

The silicone profiles are flexible and when the LED Strip is installed, a Neon light effect is achieved. They are made for lighting modern environments with a clean and elegant indirect light. Thanks to the opaque cover a diffused lighting effect is created which is pleasing to the eye.

The Neon Silicone Flexible Profiles are suitable for different decorative applications, such as creating lines of light, creating figures, marking corridors or stairs, illuminating shelves, aesthetic solutions, etc.

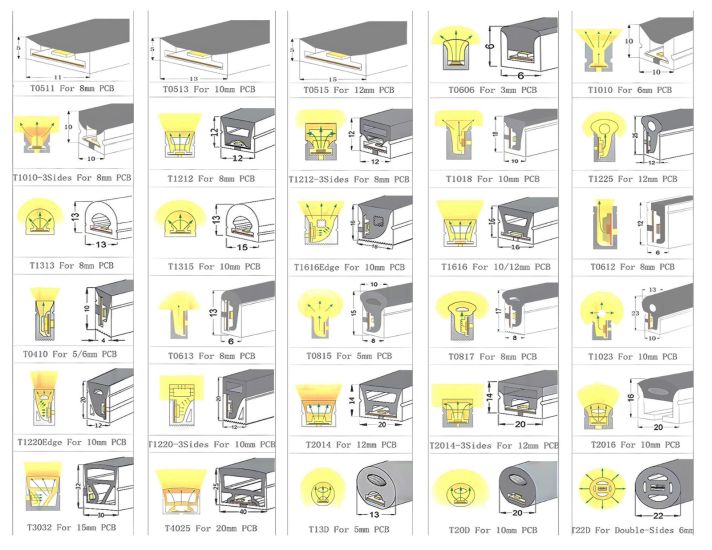

Flexible Neon Profile Models



Flexible Neon Profile Installation Instructions

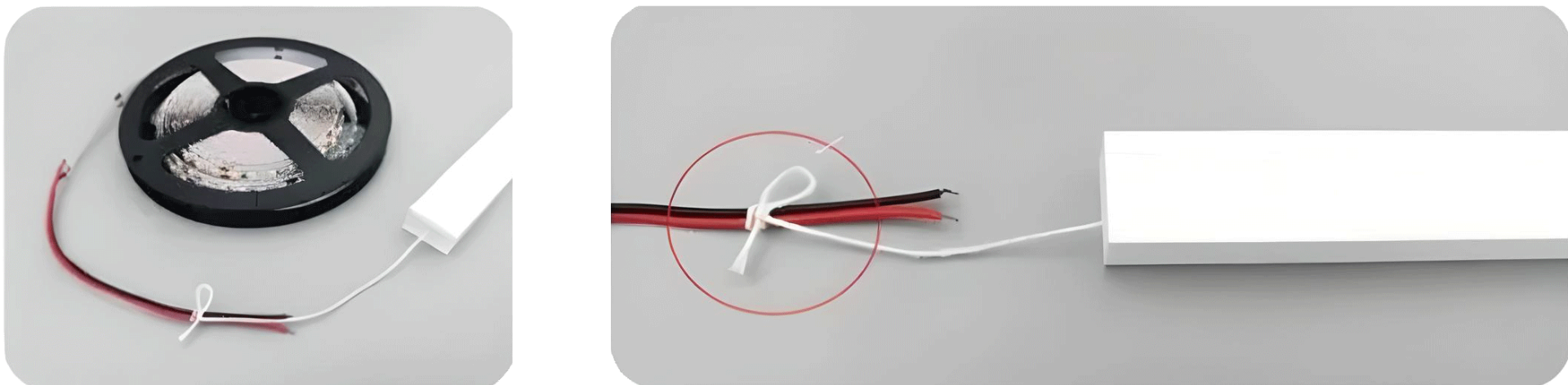

Step 1: Attach the LED strip traction wire inside the neon profile to the LED strip wire.
Note: Ensure the wire is tied firmly to prevent it from coming loose.

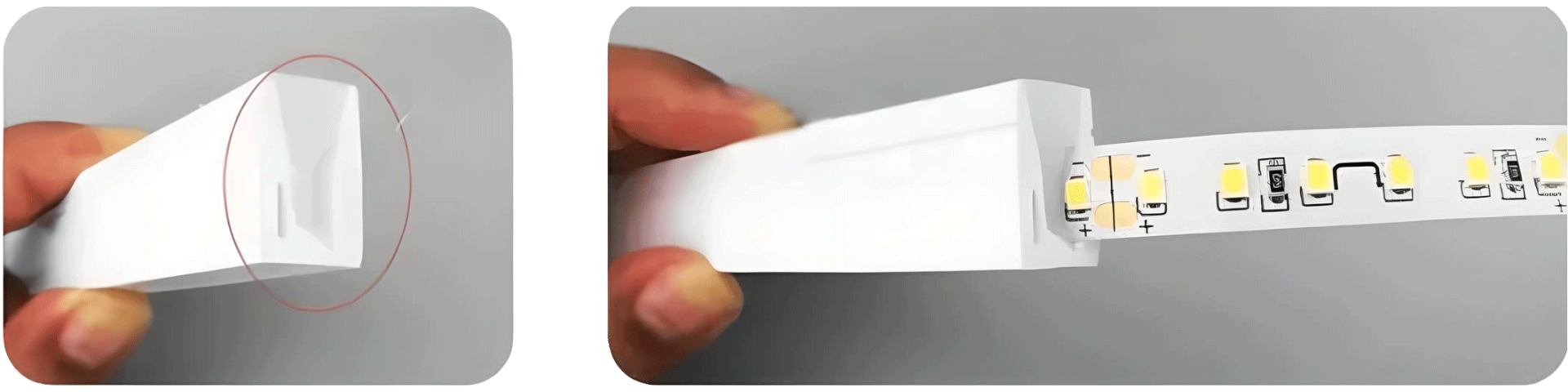

Step 2: Insert the side with the LED beads of the LED strip into the card slot of the neon profile.

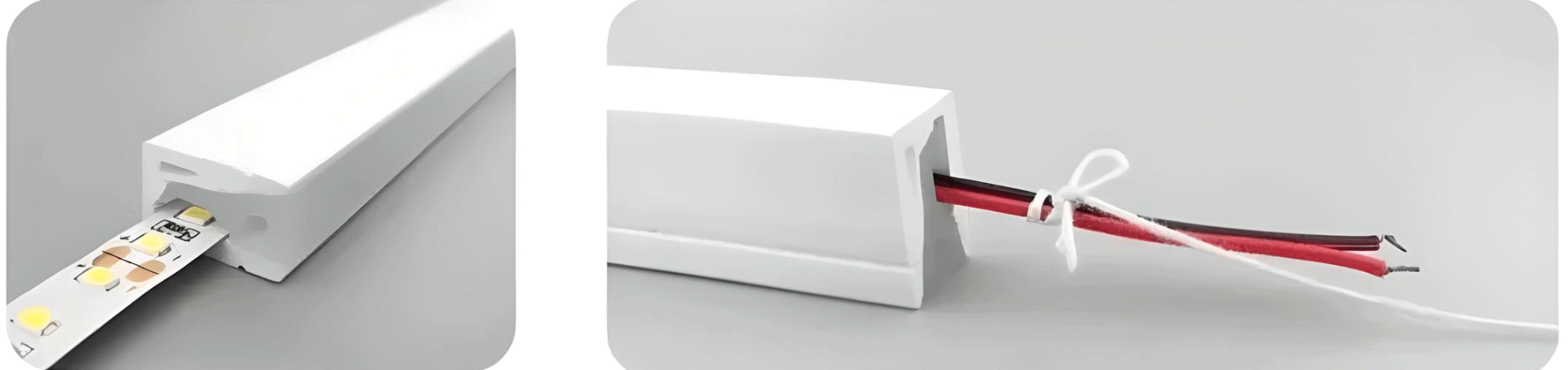

Step 3: Align the LED strip with the neon profile and gently pull the LED strip from the opposite side of the profile until it is fully inserted into the neon profile.

Step 4: Power on the LED strip to test if the neon profile is functioning correctly.
Note: If any issues are found, you can remove the LED strip, repair or replace it, and then reinstall it.
