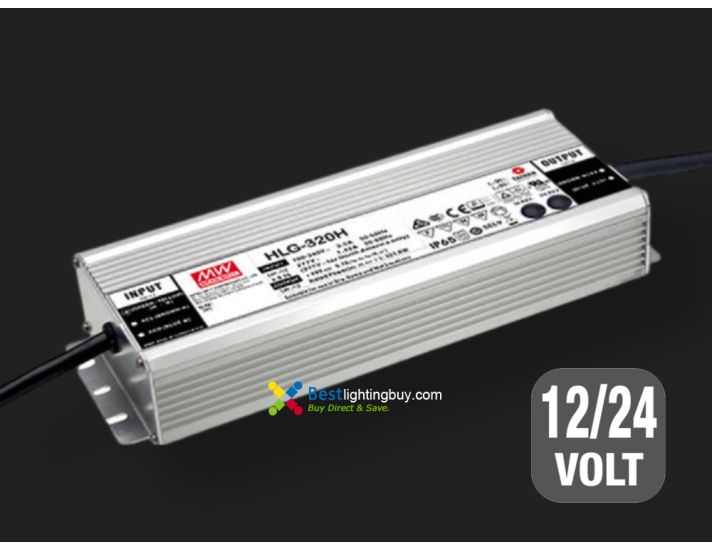

MEAN WELL HLG-320H Series IP67/IP65 Power Supply, 12V/22A, 24V/13.34A Available

The Meanwell HLG-320H stands out in the market for its advanced features and robust design. Beyond its impressive 320W power capacity, this AC/DC LED Driver boasts a dual-mode output, ensuring stable performance. Its wide input voltage range of 90-305VAC makes it adaptable to diverse electrical environments. Efficiency of up to 94%, significantly reducing energy consumption and operating costs for LED lighting systems. The absence of a fan, coupled with a sturdy metal housing, ensures reliable operation in extreme temperatures ranging from -40º C to +90º C, making it suitable for both indoor and outdoor applications.

Voltage: 12V/24V
Current - Output (Max): 12V/22A, 24V/13.34A
Overcurrent protection: 95...108%
Voltage input: 90...305V AC (47...63Hz), 127...431V DC
Power factor: PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.94/277VAC @ full load
Working temperature: -40...+70°C
Dimensions: 252x90x44mm (LxWxH)
Weight: 1,880g
