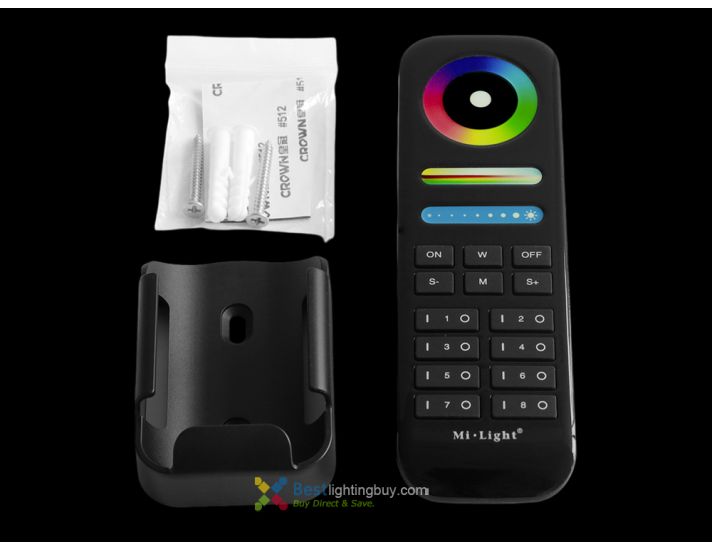

MiBoxer FUT089 8-zone 2.4G Smart RGB+CCT Wireless Touch remote

Mi-light 8-zone 2.4G 5-in-1 touch remote control

With this brand-new Mi-Light remote control, you can control up to 8 different zones simultaneously or separately. Using 2.4G (radio frequency), you can operate the paired controllers from a distance of up to 30 meters. The remote is fully touch-activated and fits comfortably in your hand. Besides its stylish, slim design, the controller is also very easy to use.
The remote control is powered by 2 AAA batteries and comes with a wall mount so you can hang it on the wall and use it as a fixed control, or simply keep it out of sight.

Associated controller

This Mi-Light fut089 remote connects directly to the Mi-Light LS2 controller. This controller can also be used directly with various Mi-Light lamps, spotlights, and downlights.

Pairing the remote control

The remote control can easily be paired with an infinite number of controllers or lights, but a controller or light can only be paired with a maximum of four remote controls simultaneously. Pairing the remote control with the LS2 LED Strip controller is simple:

1. Remove power from the controller or lamp.
2. Keep the remote control at hand and select 1 of the 8 zones.
3. Turn on the power and press the zone on button of the selected zone 3 times within 3 seconds.
4. If the light flashes 3 times, pairing is successful.
5. If it didn't work, try again.

You can connect multiple controllers and/or lights within a single zone. For example, you could connect three lights and one LED strip within a single zone, while another zone might only have one LED strip connected.

Model No.: FUT089 (White), FUT089-B (Black)
Working Voltage: 3V (AAA * 2PCS)
Standby Power Consumption: 20μA
Transmitting Power: 6dBm
RF:2.4GHz
Control Distance: 30m
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
