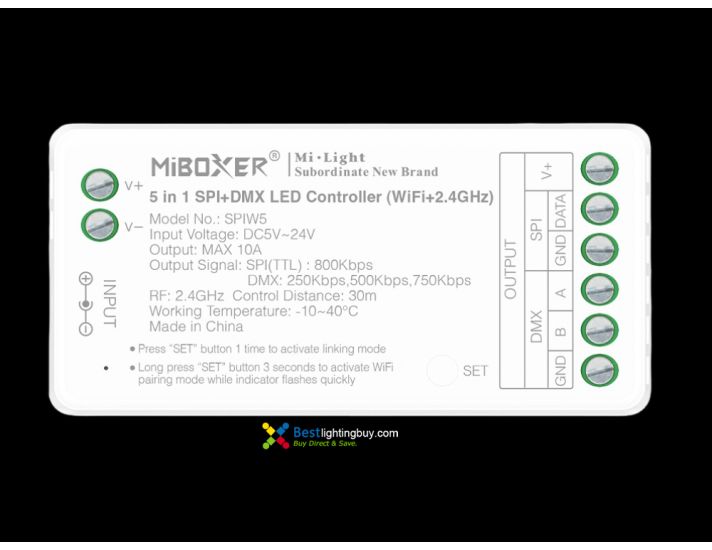

Miboxer SPIW5 5 in 1 SPI & DMX LED Controller (WiFi+2.4G), 5-24V DC
5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT
Color, pixel points, speed, static mode and dynamic mode dimmable
Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.
8 kinds of music mode work with built-in microphone or smart phone microphone
Freely switching dynamic and music mode
Setting boot animation via TUYA SMART APP
Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps
Have DND mode, usually used for power failure area to save power
- Buy 5 for $37.50 each and save 5%
- Buy 10 for $35.50 each and save 10%
- Buy 30 for $32.50 each and save 18%
,-5-24v-dc.jpg)

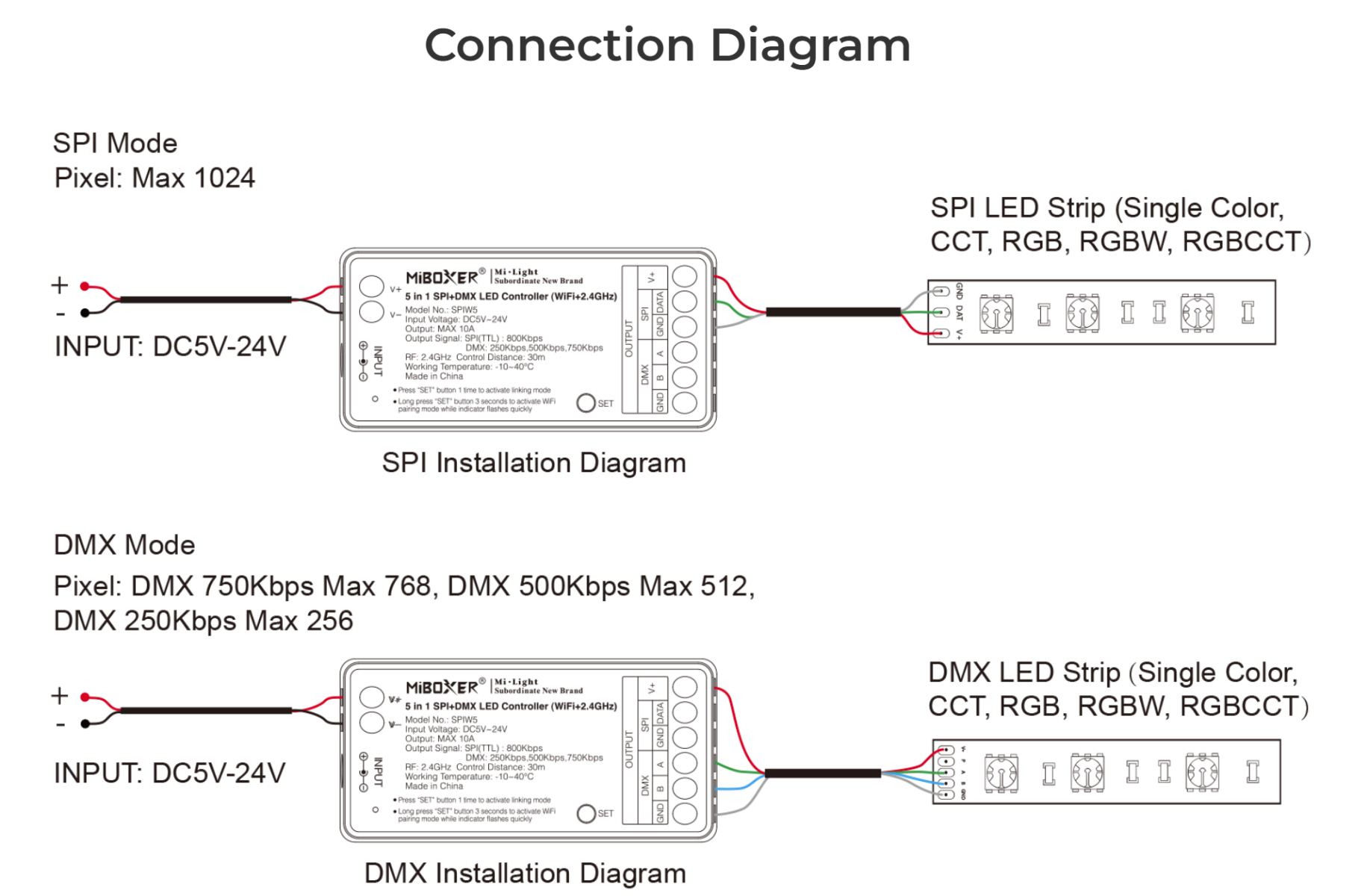

SPIW5 5 in 1 SPI+DMX WIFI+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it's special controller for SPI LED strip light. The controller support WIFI+2.4G wireless transmitting technology Setting different features like adjust different modes, color, brightness and change dynamic illumination via TUYA SMART APP or C9, B9 remote.
Specification:
Input Voltage: DC5V~24V
Output Current: Max 10A
Output Power: 50-240W
Output Type: Constant Voltage
Output Signal: SPI(TTL) 800Kbps (Max 1024 Pixel)
DMX: 250Kbps(Max 256 Pixel)
DMX: 500Kbps(Max 512 Pixel)
DMX: 750Kbps(Max 768 Pixel)
Protocol: WiFi + 2.4GHz RF
Control Distance: 30m
Warranty: CE, EMC, LVD, RED
Certification: CE, EMC, LVD, RED
Dimming Range: 0.1%-100%
IP Rating: IP20
Working Temperature: -10~40°C
Size: 74.5mm x 36mm x 17mm
