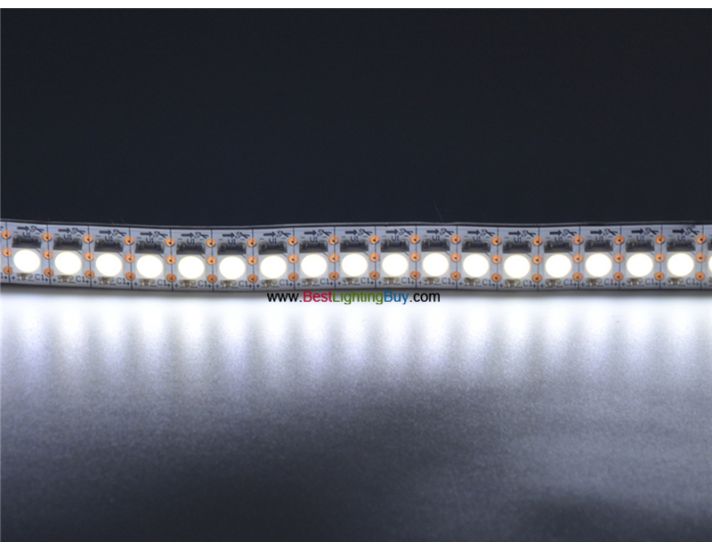

SK6812 Addressable White LED Strip, DC5V, 144/60/30 LEDs/m Density Available
SK6812 IC embedded in SMD5050 white LED,each led is addressable
30leds/m,60leds/m,144leds/m available
33.3cm/1.31",16.6mm/0.65", 6.9mm/0.27" segment cuttable
Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
Buying in Bulk: We offer competitive prices and volume discounts for customers needing to order large quantities. If you are interested in ordering items in bulk, please get in contact with us.
- Buy 5 for $37.50 each and save 1%
- Buy 10 for $35.50 each and save 7%
- Buy 30 for $32.50 each and save 14%
LED: SK6812 built-in 5050 SMD LED (Datasheet)
Working voltage: 5V DC
Max. working current: 40mA per LED
Working temperature: -40 ℃ ~ 60 ℃
LED number: 144/60/30 LEDs / meter
Color: Cool White 6000-6500K, Warm White 2800-3200K
Finish: White, Black optional
Waterproof: Nonwaterproof with 3M tape on the back, IP67 water resistant silicone sleeve
FPC Width: 12mm for 144/m, 10mm for 60/m and 30/m
Strip Length: 1m reel for 144/m, 5m reel for 60/m and 30/m
Viewing angle: ≥120
Lifespan: MTBF≥50000h
Individually addressable LED strip based on the SK2812 integrated White LED and driver. The strip is powered by a 5V power supply and is controlled by a single data line from a suitable controller, for example Teensy 3, Arduino, Raspberry Pi, BeagleBone Black or similar microcontroller/computer. The strip has 3M adhesive tape on the back. Installation surface must be smooth, clean and dry. Strip can be cut between every LED to create custom lengths. Do not bend strip sharply. Longer runs should be powered from both ends to reduce voltage drop.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Beam Angle | Watt/m |
| SK6812W-30-IP20 SK6812W-30-IP67 |
5000*10*2.5 5000*12*3.5 |
IP20 |
DC5V | SMD5050 White | SK6812 Built-in |
30 | 30 | WW: 384lm CW:390lm | 120 | 6.8w |
| SK6812W-60-IP20 SK6812W-60-IP67 |
5000*10*2.5 5000*12*3.5 |
IP20 |
DC5V | SMD5050 White | SK6812 Built-in |
60 | 60 | WW: 768lm CW:780lm | 120 | 13.2w |
| SK6812W-144-IP20 SK6812W-144-IP67 |
1000*12*2.5 1000*14*3.5 |
IP20 |
DC5V | SMD5050 White | SK6812 Built-in |
144 | 144 | WW: 1845lm CW:1872lm | 120 | 32.4w |
