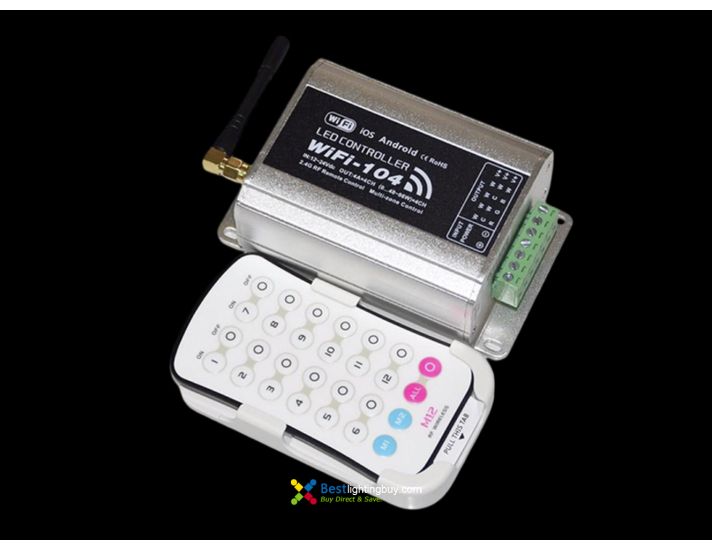

4-in-1 WIFI-104 LED Controller For IPhone & Android
Control up to 12 Zones
Suitable for Single Colour, RGB, RGBW & Colour Temperature Adjustable Lighting
Use in conjunction with the DX8 wall panel (for RGBW lighting only)
Free software on App store for iOS & Google Play for Android (Search WIFI-104)
For use with LED lighting which has a constant voltage or Constant Current input
Pair and use via your existing Wifi router or with via its own wireless network
Use Manual
Communication Standard: 2.4 GHz wi-fi, 802.11b/g/n protocol
Input Voltage: DC12 V – DC24 V
Max Current load: 5 amps input (4A Max per channel) Class 2 powered
Max output power: 192W / 384W (12V / 24V)
Control Distance: 100 feet (Distance of across the room)
Working Temperature: -20°C~50°C
Dimensions: 128(L) x 73(W) x 45(H)mm

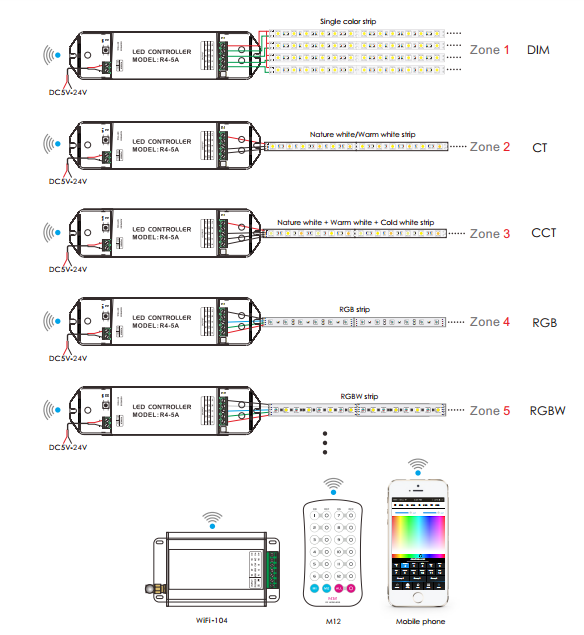

WiFi-104 is a versatile office/home lighting wifi controller system. Through WiFi-104 and built-in WiFi, various mobile devices can control an assortment of low voltage LED lighting products (12~24V DC) including the new RGBW LED Strips. After installing the related software on ios or Android phones (such as tablet PCs and other mobile devices), the WiFi-104 can control up to 12 zones. To add a additional zone, you would need to pair the WiFi-104 to the R4-5A Receiver.
Important note: that maximum length of RGB LED Flex Strip attached to Wifi-104 Receiver should not exceed 20 linear feet (due to voltage drop resulting in color loss). Use only with Class 2 regulated power supply.
The WiFi-104 has four integrated functional controls, including: Dimming, Color Temperature Adjusting, RGB and RGBW. All of which can be set as single color, color temperature (Pure White+Warm White and Pure White+Warm White+Cool White), RGB and RGBW.
WiFi – 104 control system supports direct or through a router two network connection mode:
1. As a direct way, mobile phone, pad can directly control the WiFi – 104 controller + R4-5A or R4-CC a wireless control, without any third party of network equipment
2. Through a router connection, in addition to all the functions of direct connection, (which will not affect normal Internet access) you can quickly and easily switch between the software control interface of different WiFi-103’s. This will allow you to control each WiFi-103, independent of each other, in a more convenient way. For example, there are two sets of systems, can support 24 areas.
In addition, this model has DIY (Do It Yourself) function which will allow users can get any effect they want with the easily customizable control software. If you don’t have a mobile device, or if you wish to have a simple way to control your system you can also use our M12 2.4G RF remote (included).
