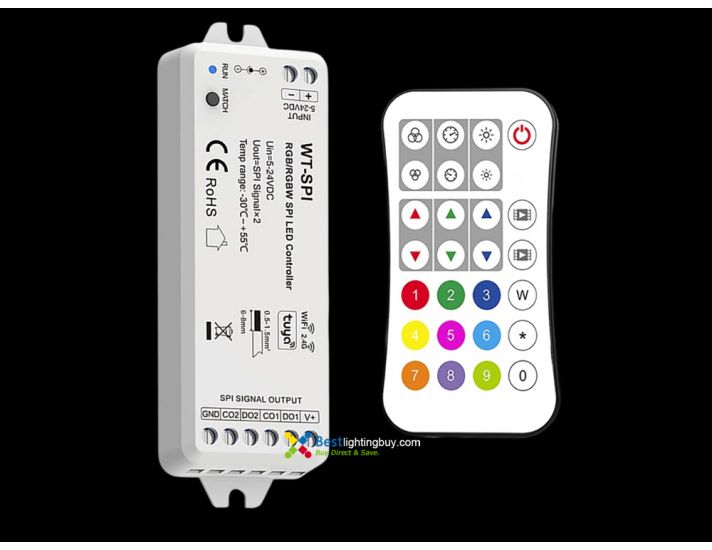

WT-SPI WiFi & RF Digital Pixel RGB/RGBW SPI LED Controller with Remote, 5-24V DC
Multi-pixel RGB/RGBW LED strip controller with SPI signal output, Tuya APP cloud control.
Compatible with 45 kinds of RGB or RGBW LED strips, chip type and R/G/B order can be set via RF remote control.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603.
Painted segment color mixing: full color, color pencil segment painting, eraser segment light off.
Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.
Multiple music rhythms: 6 local music rhythms, 3 APP music rhythms.
Match with RF 2.4G RGB remote control.
Tuya APP cloud control/Compatible with 45 kinds IC/Customized dynamic scenario mode/Multiple music rhythms/Wireless remote control
- Buy 5 for $45.50 each and save 8%
- Buy 10 for $43.50 each and save 12%
- Buy 30 for $39.50 each and save 20%
LED 5-24V DC SPI Pixel Wifi Controller WT-SPI
5-24V Multi-Pixel RGB/RGBW LED Strip controller with SPI Signal Output.
Compatible with 47 kinds of IC up to 1000 pixels.
Tuya APP Control – RGB Colour selection, dimming, on/off function, delay on/off, timer, various scenarios, and music functions.
Voice Control, support Amazon Alexa, Google Assistant and other popular smart voice control devices.
44 default dynamic effects and a range of customisable control and music rhythm effects.
Compatible with RF 2.4G Single and multi-zone remote control and can be paired with multiple controllers.
1 Zone Remote Control R9
For use with RGB and RGBW LEDs (Strip Lights, Modules etc).
Simplistic in design and user-friendly controls. All button operations with total control from a single button press.
Can be paired with multiple receivers simultaneously for synchronised control.
Using RF 2.4GHz for guaranteed signal stability and blockages for up to 30M.
CR2032 battery (NOT INCLUDED) powered.
Wall mount holder supplied with remote.
Match R9 remote control
Match: Short press on the match key, and immediately press on/off key of the remote. The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key for 10s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Set the length, chip type and RGB order of the SPI LED strip using R9 remote control
● Set the LED strip length[number of pixels(10~1000)]: * + 3 digits + *
Example:
*032*, set the number of pixels 32. *600*, set the number of pixels 600. *1000*, set the number of pixels 1000.
●Set the LED strip chip type: * +2 digits + *
*11*:TM1803
*12*:TM1809, TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815 *13*:TM1829
*14*:TLS3001, TLS3002
*15*:GW6205
*16*:MBI6120
*17*:TM1814B(RGBW)
*18*:SK6812(RGBW), WS2813(RGBW), WS2814(RGBW) *19*:UCS8904B(RGBW)
*21*:LPD6803, LPD1101, D705, UCS6909, UCS6912 *22*:LPD8803, LPD8806
*23*:WS2801, WS2803
*24*:P9813
*25*:SK9822 *31*:TM1914A *32*:GS8206,GS8208 *33*: UCS2904
*34*: SM16804
*35*: SM16825
*36*: SM16714(RGBW) *37*: UCS5603
*38*: UCS2603
● Set LED strip RGB order:* + 1 digit + *
*1*:RGB, *2*:RBG, *3*:GRB, *4*:GBR, *5*:BRG, *6*:BGR.
