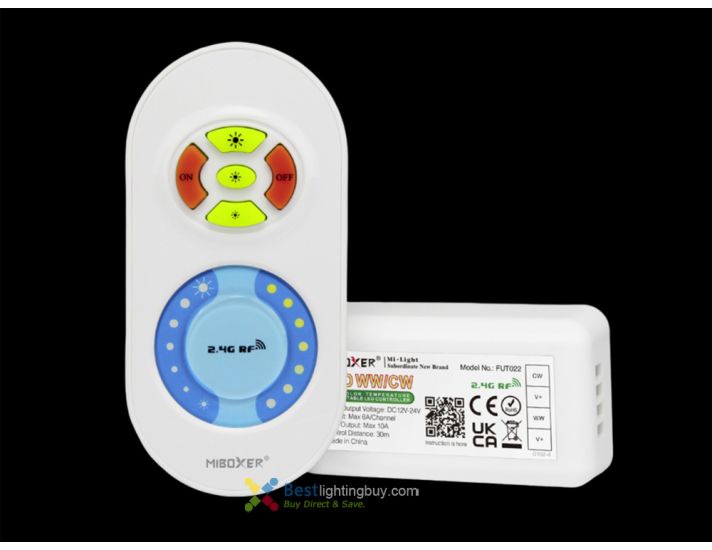

FUT022 Dual White LED Controller with RF Touch Remote
2.4G wireless tunable white remote control.
Control range is 100 ft (30 meters), from the remote to controller receiver.
RF wireless signal goes through walls, no line of sight needed.
WiFi compatible. Add a WiFi gateway, can be controlled by smartphone via WiFi or 4G network, meaning you can use your 4G smart phone to control the lights at any time and anywhere.
Controller Receiver Input Voltage: 12 or 24 DC. Two methods to power the controller receiver: DC female barrel connector or use two screw terminals for hard wire connection.
Controller Receiver Output Voltage: 12 or 24 DC.
Controller Receiver Output Amp: 6A per channel, total 10A max.
Controller Receiver Output Power (Watts): 120W or 240W.
The 2.4G wireless tunable white controller kit is ready for installation, items included:
- A 2.4G RF Tunable White Remote Control, designed with touch-wheel and control buttons.
- An RF Wireless Receiver(also WiFi compatible), 6 Amps/CH, 10Amps total max output.
The tunable white controller has power off memory function. When powered on next time, it will resume the previous setting, such as the color temperature and brightness level.
The wireless control distance is 30 meters (100ft) from the remote to the controller. RF signal does not need line of sight between the remote and receiver. The control signal goes through barrier and walls.
One remote can control an unlimited number of controllers within the control range. Pairing multiple controllers to one remote reduces wiring work, simplifying your LED installation.
The controller is WiFi compatible. Adding a compatible 2.4G WiFi Gateway Transmitter, the controller can work as a WiFi tunable white controller, which can be controlled by your smart phone or tablet via WiFi or 4G network, using an application software installed on Apple iOS or Android smart phones or tablets. This means you can control your lighting using 4G smart phone at any time and anywhere.
The WiFi Gateway supports third party smart lighting control, such as voice control via Amazon Alexa or Google Assistant. The WiFi gateway also enables two-way data communication, letting you know the light status at any time.
Model No.: FUT022
Input Voltage : DC12~24V
Output: 6A/Channel
Total Output: Max 10A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output connection: Common anode
-
