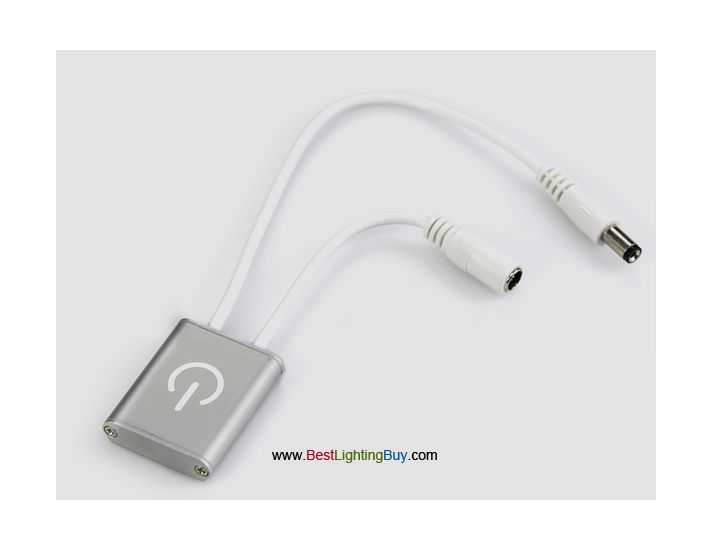

Touch LED Dimmer for Single Color LED Strip, 12~24 Volt DC, 3A

Be the first to review this product

Availability: In stock

Regular Price: $10.30

Special Price $7.45

OR

Quick Overview

Single channel LED dimmer can turn on and off and dim any 12~24VDC LED products from 10 to 100% using PWM touch sensitive control. Maximum load is 3 Amps. Male and female 5.5mm barrel power connector for connecting in-line with Power Supplies. 3M double sided adhesive included.

Touch LED Dimmer for Single Color LED Strip, 12~24 Volt DC, 3A

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Supply Voltage´╝ÜDC 12~24V
Max Load Current: 3 Amps
Output: 1 Channel
Static Power Consumption: < 1 Watt
Output Power: 36W @ 12V / 72W @ 24V
Function:Dim LED product from 0~100% using PWM with Power Supplies
Product Size: (L)30.8x(W)8.7x(H)38mm
Working Temperature: -10° C+50°C

Directions: touch finger pad for less than 5 seconds for ON/OFF function - hold for more than 5 seconds for dimming function.

Safety Information:
1. Supply voltage of this product is 12~24 Volts DC, do not exceed 24VDC
2. Shorting output wires my cause damage to dimmer
3. Always observe proper polarity when connecting power and load
4. For indoor use only – this product is not waterproof or weatherproof
