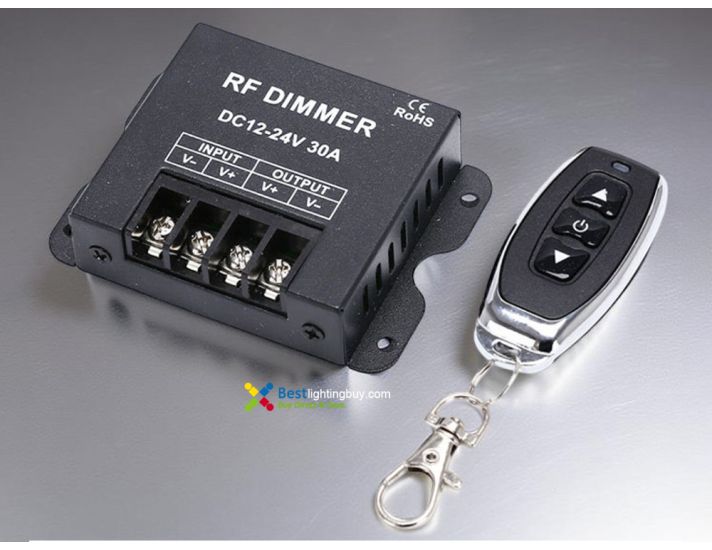

RF Remote Control LED Dimmer, 12~24 Volt DC, 8 Amps/CH

Availability: In stock

Regular Price: $17.90

Special Price $14.90

  • Buy 5 for $14.00 each and save 7%
  • Buy 10 for $13.50 each and save 10%
  • Buy 15 for $12.20 each and save 19%
OR

Quick Overview

12VDC/24VDC LED dimmer with RF remote. Universal single color LED dimmer that can dim any 12VDC or 24VDC LED products from 0%-100% using Pulse Width Modulation (PWM) circuit push button control for stepped intensity adjustment on RF remote. This product has a maximum load of 8 Amps and has spring terminal connectors for power in and out connections.

RF Remote Control LED Dimmer, 12~24 Volt DC, 8 Amps/CH

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Function: Dim LED product from 0~100% using PWM with RF Remote
Supply Voltage: DC 12~24V
Output Power: 96 Watts
Static power consumption: < 1 Watt
Working temperature: -20~60°C
Output: 1 channel
Max load current: 8 Amps
Product size: (L)110x(W)56x(H)34mm

Information:
1. Supply voltage of this product is 12~24 Volts DC, do not exceed
2. Shorting output wires my cause damage to dimmer
3. Always observe proper polarity when connecting power and load
4. For indoor use only – this product is not waterproof or weatherproof

 Check the detailed manual of this RF Remote Control LED Dimmer

This remote controlled dimmer Can be used to dim LED Modules, LED Strip, or for dimming any one color LED product with 12V/24V power requirements. Remote control requires 12V / A27 type battery, one is included.
