200/m 5mm APA102 Addressable RGB LED Strip, Black, DC5V, 1m
200 Micro APA102 Digital Addressable 2020 SMD RGB LED per meter. 5V operation. Each strip is sold in a 1 meter long length roll. It has the most LED's and the smallest footprint currently available on the market.
Buying in Bulk: We offer competitive prices and volume discounts for customers needing to order large quantities. If you are interested in ordering items in bulk, please get in contact with us.
- Buy 5 for $55.50 each and save 7%
- Buy 10 for $52.50 each and save 12%
- Buy 30 for $49.50 each and save 17%
IC Type: APA102 2020 (APA102 datasheet)
Working voltage: 5V DC
LED number: 200pcs LEDs/m
Background Color: Black
Waterproof: Nonwaterproof with 3M tape on the back

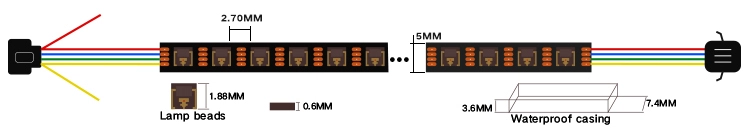

FPC Width: 5mm
Length: 1 Meter a roll
IP Rating: IP20 (non-waterproof)
Viewing angle: ≥140
Lifespan: MTBF≥50000h
The APA102C chips are easier to control and offer faster (20kHz) PWM rates for flicker free performance. Each LED on the strip is 2020 size, and has an embedded microcontroller inside it which controls brightness levels, and interprets the data you send it. Each strip needs two wires to control all LEDs, one clock and one data. This arrangement makes it easier to use with slower devices like the Arduino Uno.
At the ends of the strips are male/female 4 pin JST-SM plugs which allow multiple strips to be connected. The power lines are broken out onto separate wires for easy access.
-

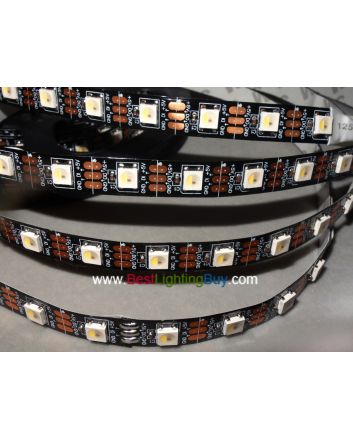

60 LED/m SK6812 NeoPixel Digital RGBW LED Strip, 13.1 ft/reel, Sold by reelSpecial Price $87.50 Regular Price $125.00 -
SK6812 RGBW Addressable LED Strip, DC5V, 144/60/30 LEDs/m Density AvailableSpecial Price $37.50 Regular Price $40.00 -
SK6812 Digital RGB Addressable LED Strip, DC5V, 144/60/30 LEDs/m Density AvailableSpecial Price $29.50 Regular Price $33.00 -

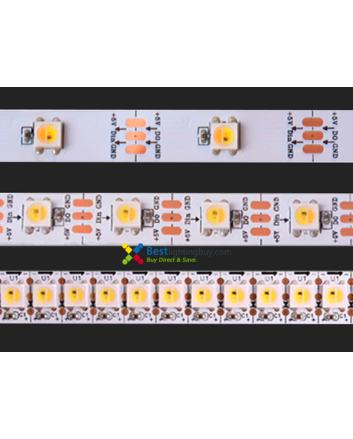

SK6812 WWA Addressable White LED Strip, 144/60/30 LEDs/m Density AvailableSpecial Price $39.50 Regular Price $45.00 -
