WS2815 Addressable RGB LED Strip, 12V Dual Signal Transmission, 144/60/30 LEDs/m Density Available

Special Price $37.50 was $42.00
In stock
SKU
BLB10138
WS2815 IC embedded in SMD5050 RGB LED. Each led is programmable.
Input Voltage DC12V, single signal (DI) control.

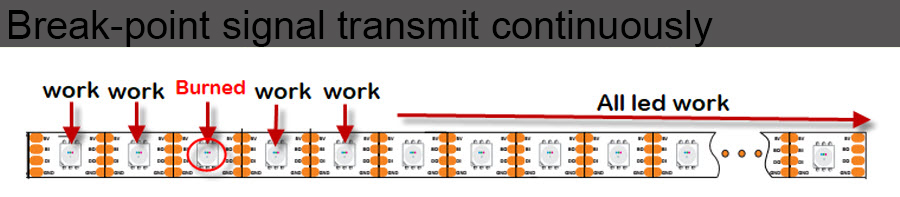

Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED
Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector

Buying in Bulk: We offer competitive prices and volume discounts for customers needing to order large quantities. If you are interested in ordering items in bulk, please get in contact with us.

  • Buy 5 for $35.50 each and save 5%
  • Buy 10 for $33.50 each and save 11%
  • Buy 30 for $29.50 each and save 21%

LED: WS2815 built-in 5050 SMD LED (Datasheet)
Working voltage: 12V DC
Max. working current: 60mA per LED
Working temperature: -40 ℃ ~ 60 ℃
LED number: 144/60/30 LEDs / meter
Color: RGB
Finish: white or Black
Waterproof: Nonwaterproof with 3M tape on the back, IP67 water resistant silicone sleeve
FPC Width: 12mm for 144/m, 10mm for 60/m and 30/m
Reel Length: 1 meter for 144/m, 5 meters for 60/m, 5 meters for 30/m
Viewing angle: ≥120
Lifespan: MTBF≥50000h

The strip is powered by a 12V power supply and is controlled by a single data line from a suitable controller, for example Teensy 3, Arduino, Raspberry Pi, BeagleBone Black or similar microcontroller/computer. The strip has 3M adhesive tape on the back. Installation surface must be smooth, clean and dry. Strip can be cut between every LED to create custom lengths. Do not bend strip sharply. Longer runs should be powered from both ends to reduce voltage drop.

Product Model
M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Beam Angle Watt/m
WS2815-30-IP20
WS2815-30-IP67
5000*10*2.5   5000*12*3.5

IP20
IP67

DC12V SMD5050  RGB WS2815
Built-in
30 30 R: 75lm
G:150lm B:60lm
Mix W:240lm
120 8w
WS2815-60-IP20
WS2815-60-IP67
5000*10*2.5   5000*12*3.5

IP20
IP67

DC12V SMD5050   RGB WS2815
Built-in
60 60 R: 150lm
G:300lm B:120lm
Mix W:480lm
120 18w
WS2815-144-IP20
WS2815-144-IP67
1000*12*2.5   1000*14*3.5

IP20
IP67

DC12V SMD5050   RGB WS2815
Built-in
144 144 R: 360lm
G:720lm B:288lm
Mix W:1150lm
120 40w
