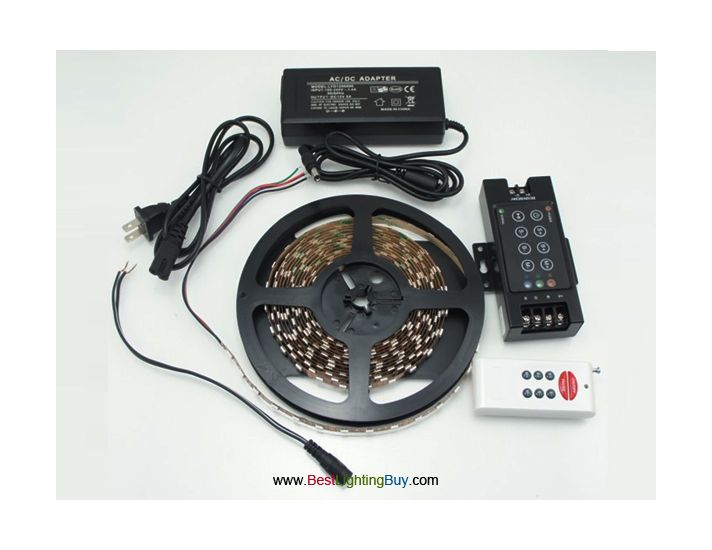

Bright SMD 5050 Flexible RGB LED Strip Kit With 8 Keys Controller

LED Type: SMD 5050
LED Quantity: 150 pcs
Color: RGB(Multi Color)
Size: L500cm(16.4ft) x W1.0cm x H0.4cm
View angle: 120°
Working Voltage: DC12 V
Working Temperature: -4°F (-20°C)~ 122°F (50°C)
Waterproof types: Waterproof / Non-waterproof (optional)
Functions: 3-LED Cuttable
Lifespan: 50,000+hours

Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can notoccur between connecting wire before you turn on the power;
2. Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led;
S(3)+: The step of the speed change add 1 by each pressing;
S-(4): The step of the speed change subtract 1 by each pressing;
B+(5): A brightness control button,the step of the brightness add 1 by each pressing;
B-(6): The step of the brightness subtract 1 by each pressing;

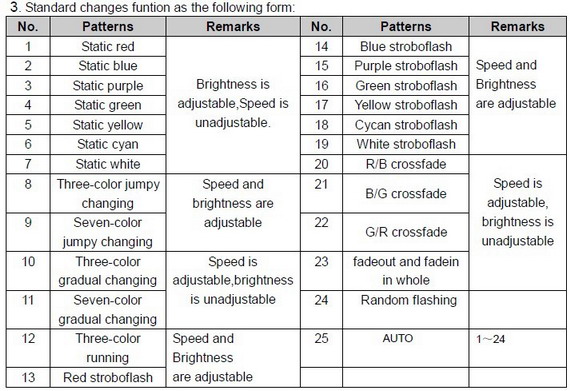

M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)
M-(8): The NO. of patterns subtract 1 by each pressing;

This Color Changing (Millon Color) LED Strip Kit includes:
