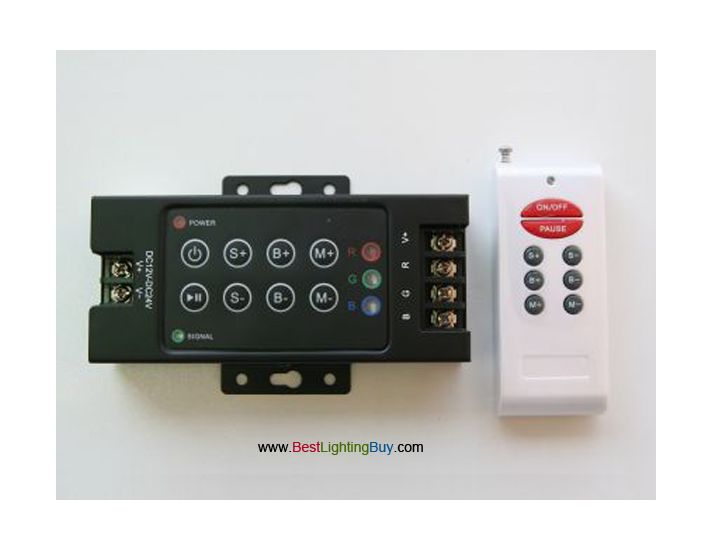

8 Keys RGB RF Remote Controller, 4 Amps/Channel

Function: Control 3 channel RGB LED products using wireless remote
Applications: Specific color selection or color change with speed control modes for accent lighting
Input Voltage: 12 Volt DC or 24V DC
Connection Mode: Common Anode (+)
Output Programs: Three CMOS drain-open output
Maximum Load: 4 Amps/channel (12 Amps total)
Output Power: 144 Watt @ 12VDC 288Watt @ 24VDC
Modes: 25 Colour Changing Programs
Control Method: Wireless RF Remote Control
Batteries: 1 x 12V 23A Battery

Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

2. Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led;
S(3)+: The step of the speed change add 1 by each pressing;
S-(4): The step of the speed change subtract 1 by each pressing;
B+(5): A brightness control button,the step of the brightness add 1 by each pressing;
B-(6): The step of the brightness subtract 1 by each pressing;
M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)
M-(8): The NO. of patterns subtract 1 by each pressing;
