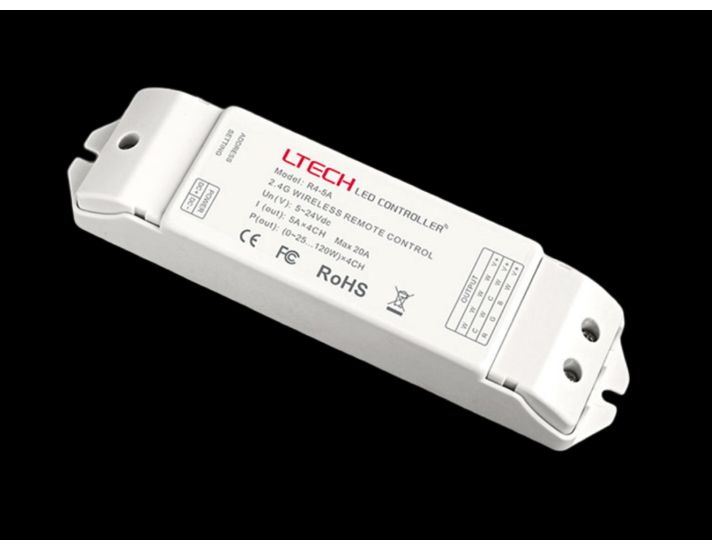

R4-5A Wireless Zone Receiver, 5-24VDC, 5A/CH

Be the first to review this product

Availability: In stock

Regular Price: $67.00

Special Price $59.00


Quick Overview

This receiver can be paired to our WiFi-104 4 in 1 LED controller for control over 12 zones. Use this receiver to control 1, 2, 3 or 4 color constant voltage LEDs with 12 individually controllable zones. With 5A x 4CH max output this receiver can control an additional 240W of constant voltage LEDs at 12VDC or 480W at 24VDC, with a 150ft RF signal radius. Requires WiFi-104 or wireless LED wall mounted control system to operate.

R4-5A Wireless Zone Receiver, 5-24VDC, 5A/CH

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


Working Frequency 2.4GHz
Input voltage DC5V~DC24V
Max current load 5A x4CH Max 20A
Max output power 100W/240W/480W(5V/12V/24V)
Remote Distance 30m
Working temperature -30~55
Dimensions L175*W44*H30mm

The WiFi zone controller works together with the WiFi-104 LED control system. The zone controller connects via your existing home network and will allow full control of any LEDs installed in that area. Perfect for retrofit applications where running new cables is not possible. It has four outputs and can be placed up to 50 meters in an open environment from the WiFi-104 and 30 meters from the DX5 or DX8 within an open environment. Consider walls and other obstacles, which reduces the range of the receiver. The LED wall controller is suitable for various types of LED products, such as single colour LED Strip, RGB LED Strip and RGBW LED Strip. Universal size for easy mounting in standard wall mounting box. The receiver operates in conjunction with the WiFi-104 LED Lighting Control System.
