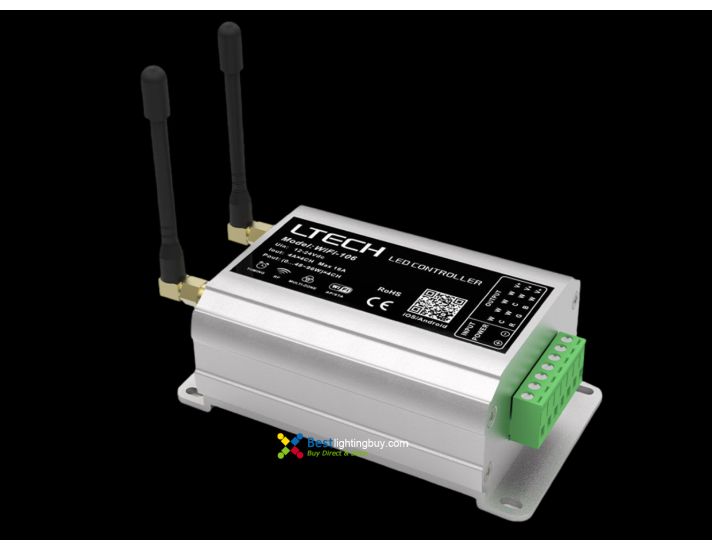

12 Zones Wifi-106+F12 WiFi/RF LBUS Controller for Dimming, CT, RGB, RGBW LED Strips
WiFi-106 is a WiFi lighting control system, Controls various types of LED lighting products by installing the related App on our iOS or Android mobile devices which support WiFi connection. consisted of APPs and WiFi controller.
With DIM, CT adjustment, RGB and RGBW changing 4 in 1 operation, plus 12 zones control function, you can connect directly or by a router.
- Buy 5 for $199.50 each and save 5%
- Buy 10 for $189.50 each and save 9%
- Buy 30 for $179.50 each and save 14%
The WiFi-106 controller can control up to 12 zones of lighting. The controller itself can connect directly to LED Strip or ‘F4’ zone receivers are used for multi zone requirements.
There are two ways of connecting with the WiFi-106 controller, either directly or through a network router. The WiFi-106 has its own WiFi network that a smart device (phone, pad etc.) can connect with. However it’s usually best to connect the WiFi-106 to a WiFi network. This lets any device connected to the network control the WiFi-106. Multiple WiFi-106 controllers can be connected to the router allowing multiple sets of up to 12 zones of lighting per controller.

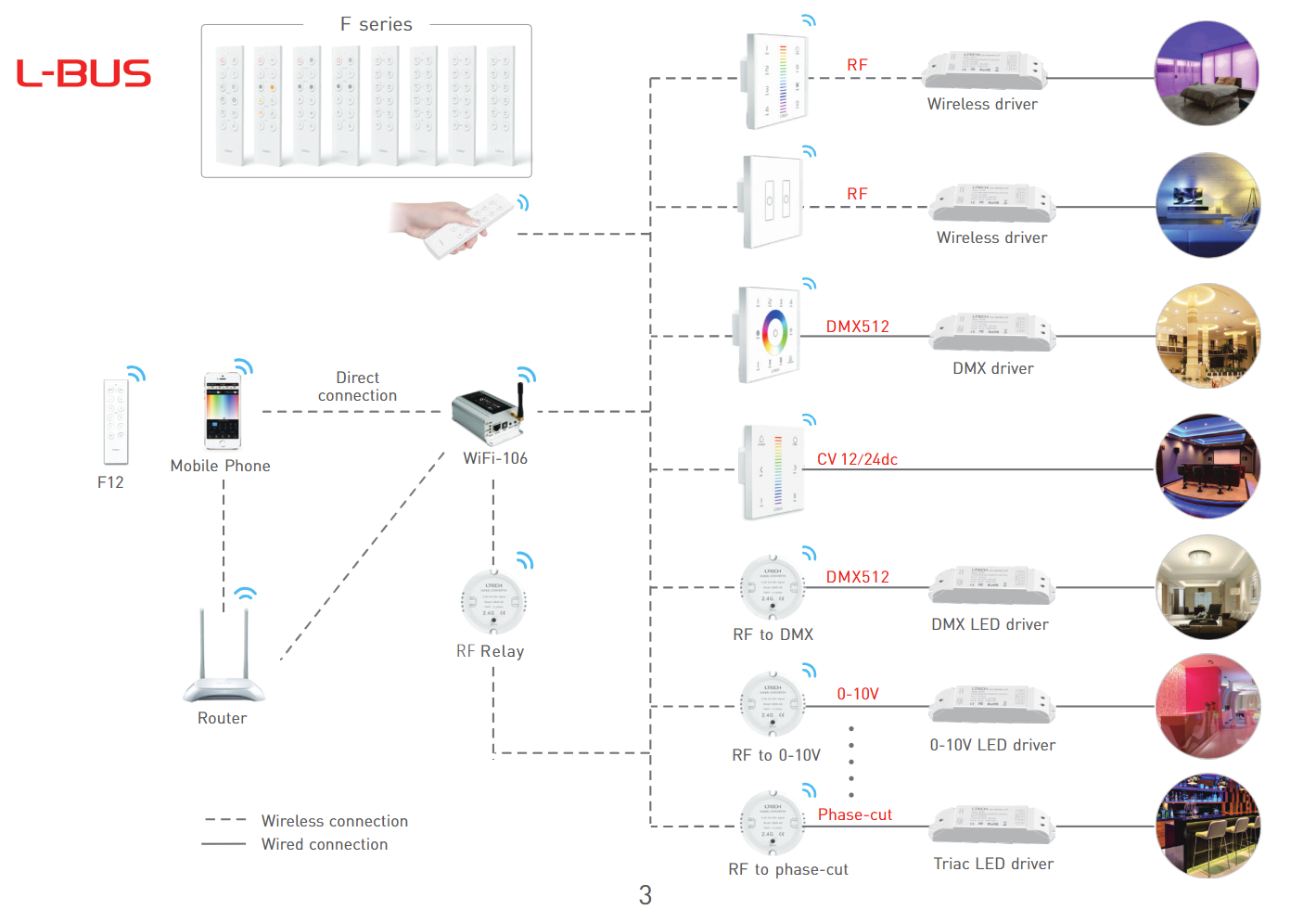

The WiFi-106 can also be used as a master controller in the new “LT-BUS” commercial lighting control system, allowing the app to control a huge range of LTECH products. It’s also fitted with timing function; lights can be automated according to the time of day and day of the week.
An app is needed on each smart device used to control the lighting. The app is free and available in IOS and Android format.
Included with the WiFi-106 controller is a simple remote control. This primarily allows the switching on or off of individual zones and the recall of your favourite lighting scenes, useful if a smart device isn’t to hand.
WiFi-106 Controller
Communication standard: 2.4GHz WiFi, 802.11b/g/n Protocol
Input voltage: 12~24Vdc
Output Current: 4A×4CH Max. 16A
Max output power: (0~48W...96W)×4CH Max. 384W
Control distance :Max. 100m (eye to eye)
Working temperature: -30℃~55℃
Dimensions: L128×W73×H45(mm)
Package size: L160×W110×H50(mm)
Weight (G.W.) :470g
F12 RF Remote Control
Working voltage: 3Vdc (Battery CR2032）
Working Frequency: 2.4GHz
Package Size: L150×W46×H18(mm)
Weight (G.W.): 85g
-
