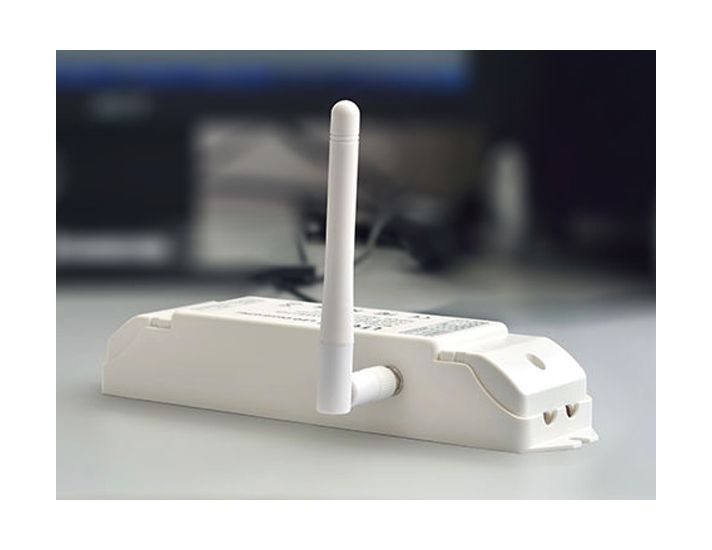

2.4GHz Wireless DMX Transmitter/Receiver, DC 5V - 24V

Be the first to review this product

Availability: In stock

Regular Price: $105.00

Special Price $89.50

OR

Quick Overview

DMX control allows for full colour control (up to 16 million colours) via mixing the Red, Green and Blue LED Diodes. The use of wireless DMX transceivers avoids the need for expensive wiring or allows for installation and control of fixtures that may not be practical to run new cables to. The DMX transceiver can be set either in send or receive mode.
Download user manual.

2.4GHz Wireless DMX Transmitter/Receiver, DC 5V - 24V

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Input voltage: DC5V-DC24V
Input/output signal: DMX512
Working frequency channel: 2.4GHz ISM 64 channels
Maximum transmitted power: 20dBm
Receiver sensitivity: -96dBm
Communication distance: up to 350m (line of sight)
Working temperature: -20℃~55℃
Dimension: L175×W44×H30mm

This Wireless DMX512 Transceiver transfers DMX512 or RS-485 data without wires up to 1000ft away to one or more receivers. (Supports point to point or point to multi-point), (just set the transmitter and one or more receivers to the same channel).

The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings or devices you want to be in sync and cant get wires between. Data is sent in real-time and is reliable. it is also a great way to isolate devices or areas so power surges won't travel over wires and damage all your devices.

The product uses the 2.4GHZ RF global open ISM frequency, and pick between 64 channels so you can run up to 64 separate groups in the same area without interference. Use the relay Settings if need further increase the communication distance.

Note: These use screw terminals for connecting to your DMX devices so you may need an adapter cable (DMX Cale cut in half) or make your own cable if you devices require a 3 or 5 pin XLR Connector. You will need at least 2 of these units (set one to Transmitter and the other(s) to Receiver(s).
