36mm Square WS2801 Digital Intelligent 4 RGB LED Pixels, Strand of 20, 12VDC

Be the first to review this product

Availability: In stock

Regular Price: $73.40

Special Price $54.30

  • Buy 10 for $49.50 each and save 9%
  • Buy 30 for $47.90 each and save 12%
  • Buy 50 for $44.90 each and save 18%
OR

Quick Overview

Each 36mmx36mm metal pixel square use a WS2801 chip and 4 RGB LEDs, 12VDC power, 1.44Watt maximum per pixel,20 pieces per strand. Sold by strand.

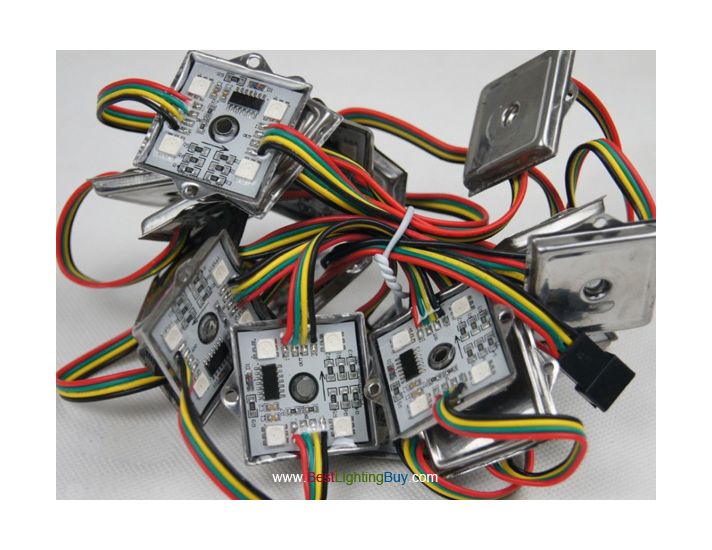

36mm Square WS2801 Digital Intelligent 4 RGB LED Pixels, Strand of 20, 12VDC

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Working Voltage: DC12V
LED QTY: 4 pcs SMD5050 per metal pixel square
LED Type: SMD5050 RGB
IC type:WS2801IC ( WS2801 datasheet )
LED view angle: 120 degree
Waterproof IP grade:IP65
Emitting Color: RGB
Power Consumption: Max 1.44W/pcs
Brightness Level: 256 level
Dimension: 36mm x 36mm

The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller, we have an example code linked below that works on an Arduino, it should be simple to adapt it to any other microcontroller.
