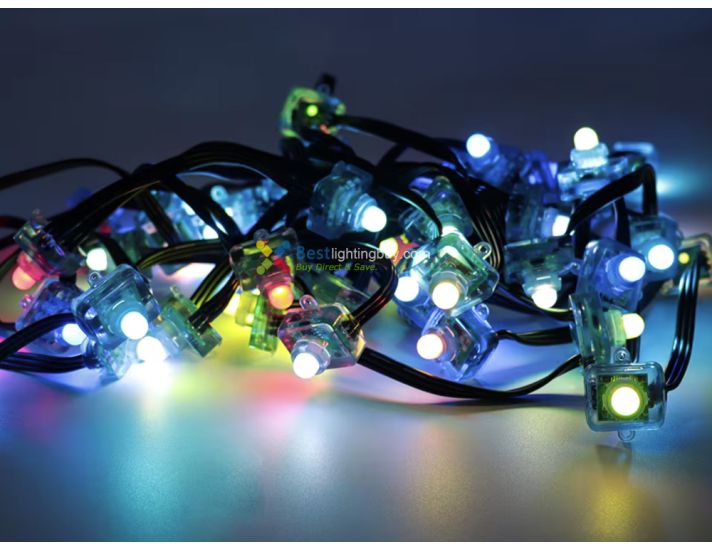

12mm Addressable RGB Lay-Flat LED Pixels, 5/12V, WS2811/WS2801/GS8208, String of 50/100
Flat-type WS2811/WS2801/GS8208 RGB pixels, 5/12VDC power, 12mm diameter, and 38mm deep from the top of the LED to the back of the rubber, 50/100 pieces per strand. Sold by strand.
Black wire.
we also have pixels that are bullet-type, both are the same electronics, just different shapes!
- Buy 10 for $29.95 each and save 9%
- Buy 50 for $27.95 each and save 15%
- Buy 100 for $25.95 each and save 21%
Individually Addressable: Control each pixel separately for dynamic effects and stunning displays.
Durable Design: With a 12mm diameter and IP68 waterproof
Easy Installation: Comes with 4-inch wire lengths from shell to shell, and each pixel includes 18awg JST/waterproof pigtails for hassle-free connections.
Efficient Power Use: Consumes only ~0.25W per pixel, making it an energy-efficient choice for your lighting setup.
Secure Connections: Features a male plug with clear wire coding: V+ for power, middle for the data line, and ground at the opposite end.
Working Voltage: 5V/12V DC
Current consumption: ~.25W/.022A

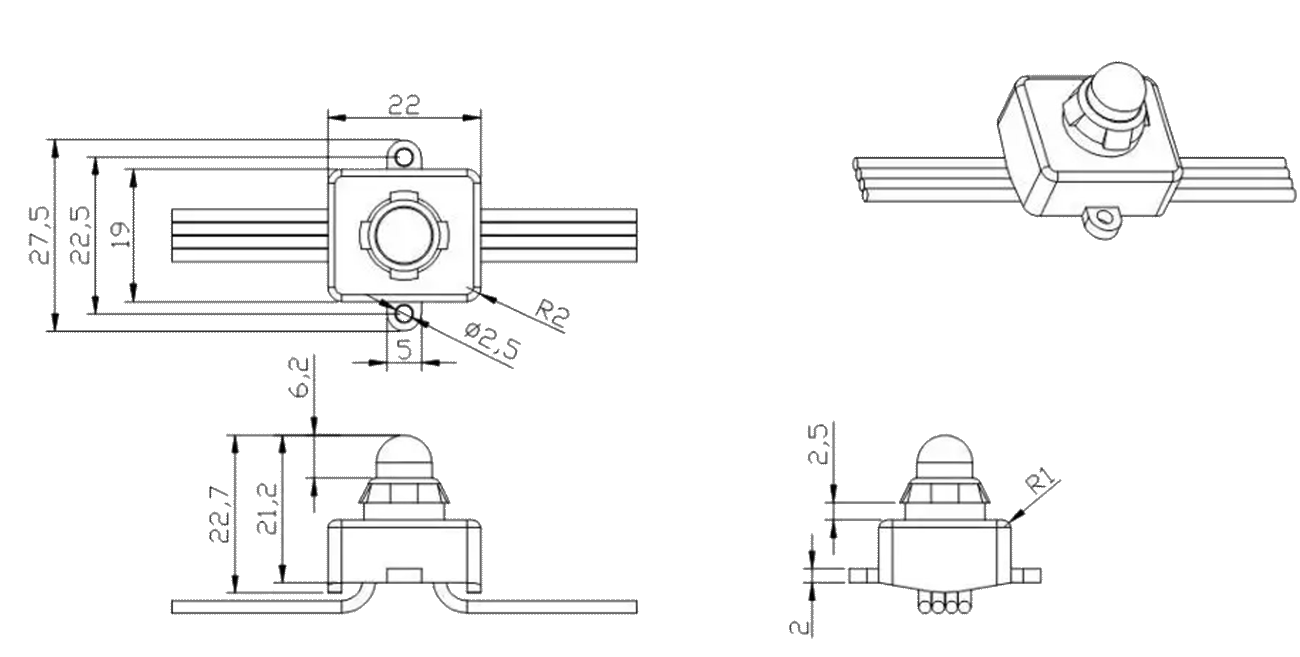

Clip into a 12mm drilled hole
Maximum diameter of node: 12mm / .47"
Base dimensions: .75 inch x 1 inch
Maximum height (from wires at base to top of node): 1 inch
Pixel protocol:
WS2811 (three wires, supported by every major pixel controller)
WS2801(four wires, with separated Clock and Data lines)
GS8208 (four wires, dual data signal lines, similar protocol to WS2811)
Brightness level: 256 level
Emitting Color: RGB
LED view angle: 120 degree
Waterproof IP grade:IP68
Wire: BLACK 18AWG 4 INCH
WS2811 WS2801 GS8208 Comparison
| Feature | WS2811 | WS2801 | GS8208 |
|---|---|---|---|
| Protocol | Single-wire | SPI-like (Data + Clock) | Single-wire |
| Voltage | 5V/12V | 5V | 12V |
| Addressability | Groups of 3 LEDs | Individual | Individual |
| Refresh Rate | Moderate | High | High |
| Color Depth | 24 bits | 24 bits | 24 bits |
| Efficiency | Good (high voltage) | Moderate (low voltage) | Excellent |
| Cost | Low | Medium | Medium-High |
| Ideal Use Cases | Budget projects with few LEDs | Smooth animations, precise control | High-performance, long runs |
-
