4 Channel DMX512 Decoder for RGBW LED Light, 5A/CH Output

Be the first to review this product

Availability: In stock

Regular Price: $74.00

Special Price $63.30

OR

Quick Overview

256 scales of smooth brightness adjusting.
User addressable DMX interface-with easy dip-switch settings and testing modes.
High power output, 4 output channels.
DMX pass through and in/out connector for daisy chain configurations.
You can mix and match the connections XLR in and RJ-45 Out or just use one or the other.

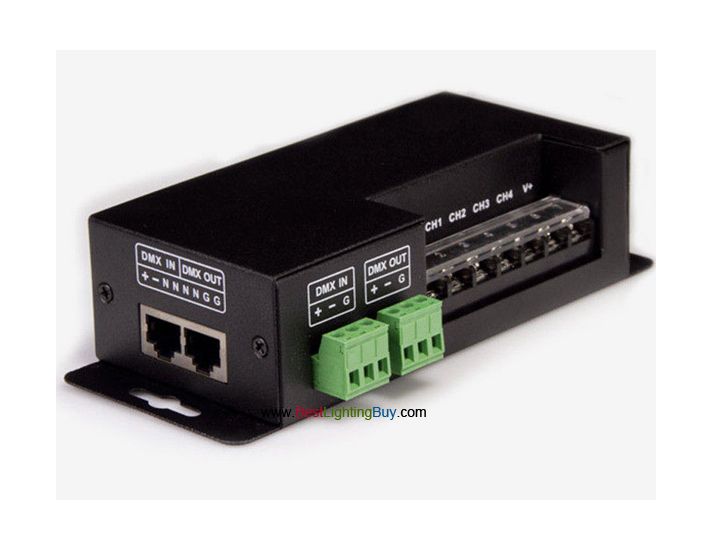

4 Channel DMX512 Decoder for RGBW LED Light,  5A/CH Output

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Constant Voltage DMX-PWM Decoder
Input signal DMX512
Input power DC5V~DC24V
Max load current 5A ×4CH Max 20A
Max output power 100W/240W/480W(5V/12V/24V)
Gray scale level 256 levels/CH
DMX512 socket XLR-3, RJ45, Green terminal
Dimming range 0~100%
Working temperature -30℃~65℃

It also has built-in testing and stand alone features.Simply turn on the last dip switch labeled 'fun' to enable stand alone mode (when you don't have a DMX single or for testing). You can set the color or fade/flash modes and adjust the speed by using different combinations of the dip switches.

Check the detailed manual of this 4 Channel CV DMX512 Decoder

You may also be interested in the following product(s)

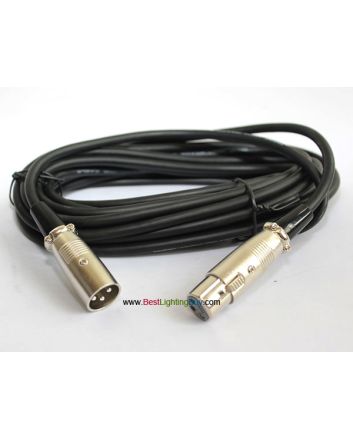

3 Pin XLR Male Female Extension Cable, 1m, 3m, 5m, 10m long available

3 Pin XLR Male Female Extension Cable, 1m, 3m, 5m, 10m long available

Regular Price: $13.70

Special Price $9.65

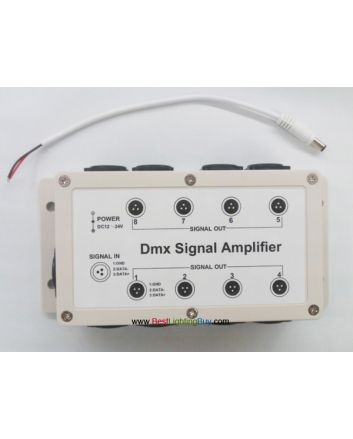

DMX512 LED Signal Amplifier Splitter (1 in : 8 out)

DMX512 LED Signal Amplifier Splitter (1 in : 8 out)

Regular Price: $52.00

Special Price $49.00

3 Channel CV RGB DMX512 Decoder, 4A/CH Output

3 Channel CV RGB DMX512 Decoder, 4A/CH Output

Regular Price: $49.95

Special Price $39.00

As low as: $29.00

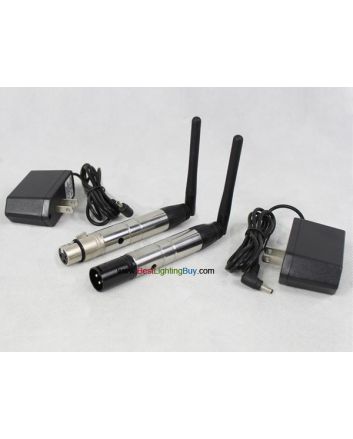

2.4G DMX512 Wireless Dmx Transmitter Receiver

2.4G DMX512 Wireless Dmx Transmitter Receiver

Regular Price: $131.00

Special Price $103.60

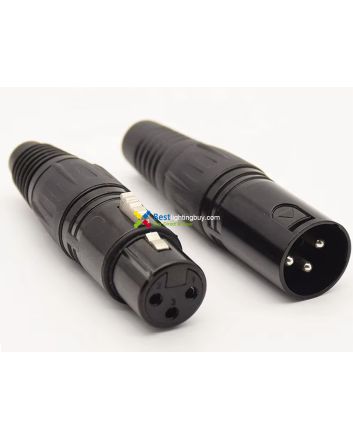

 3 Pin  Male Female XLR DMX Connectors Set
