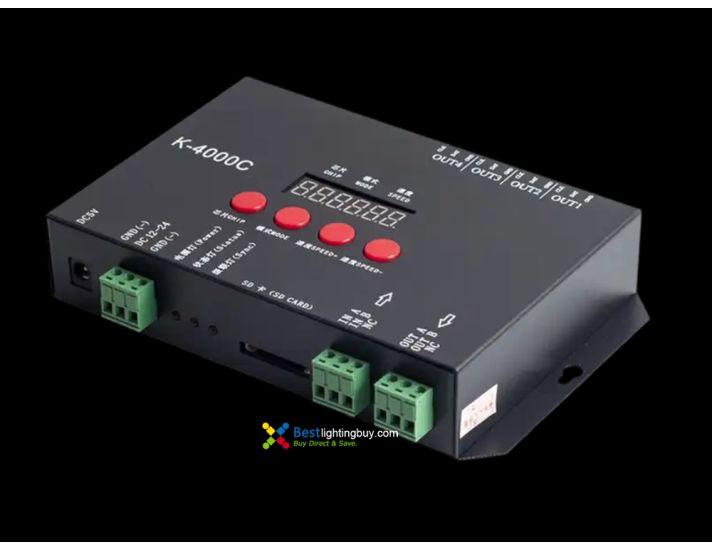

4 Ports K-4000C SD Card LED Pixel Controller for SPI/DMX RGB/RGBW Strips, 4096 Pixels, 5-24V DC
K-4000C RGB LED Lighting Solution Controller Support 32-65536 level grayscale, correcting with software Gamma.
K-4000C RGB LED Lighting Solution Controller Support various point, line, and area light sources, various rules, and special-shaped processing.
Support 4 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of 512 pixels take three channels as an example).
The play content can be stored on an SD card, which can store up to 32 effect files. The SD card capacity supports 128MB-32G
The controller can be used alone or in a cascade. The cascade adopts the photoelectric isolation method, featuring anti-interference and better stability. The cascade distance between two controllers can reach
150m by using a pure copper power cord of 0.5 mm2.
The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust the controller’s “CHIP” button to select the loaded IC, which is more flexible and convenient.
The IC controller for DMX lamps has its own address writing function; in addition, with LedEdit-K software or above version, you can set the one-key address writing function.
Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.
The K-4000C Programmable LED Controller can handle dual data, data and clock (SPI), and single data LED chips for creating a wide range of special lighting effects, such as firework, chasing, rainbow, scrolling text, and more. The LEDEdit software also offers a library of lighting effects, and users can even upload their own videos or pictures for custom effects.
Working Voltage: DC5-24V
Power Consumption: 2W
Data Transmission Port: Wiring Terminal
Working Temperature: -30℃-+85℃
Built-in 22 Kinds Of Lighting Effects And Support 3 Channels And 4 Channels
Max Loading Pixels: 4096PCS(RGB)/2048PCS(RGBW)
Memory Card Type: SD Card/High-Speed SD Card
Memory Card Capacity: 128MB-32GB
Memory Card Format: FAT/FAT32
Memory Card Store File: *.led
Software: LedEdit-K
32 To 65536 Degree Gray Control, Software Gamma Correction Processing
Support Load Lamp Is 4 Channels (RGBW) Pixels Or Split Into Single Channel Point Pixels
Enhanced 485 TTL And 485 Differential (DMX) Signal Output
Support Various Point, Line And Surface Light Sources, Various Rules And Special-Shaped Processing
Support ICs:
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
01: SM16716,16726 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
02: P9813 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
03: LPD6803 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
04: LX1003,1203 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
05: WS2801 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
06: LPD1886 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
07: TM1913 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
08: TM1914 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
09: P9883,P9823 (support up to 1024*4=4096 pixels, suggest to load ≤512*4=2048 pixels)
10: DMX (support up to 512*4=2048 pixels, suggest to load ≤320*4=1280 pixels)
11: DMX 500K (support up to 512*4=2048 pixels, suggest to load ≤320*4=1280 pixels)
-
