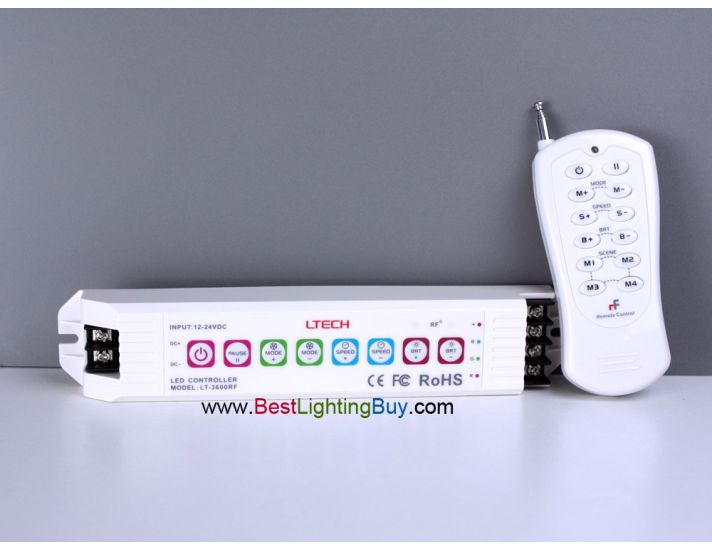

LT-3600RF RGB controller with RF Remote, 6A/CH, 12V-24V DC
Automatically adapt to LED light which works from DC12V-24V.
4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
16/32 fantastic modes such as color smooth, color skipping, horserace, strobe, etc.
Can stop at static single color, speed & brightness adjustable at pause status.
LT-3600 Manual
Input Voltage: DC12V~DC24V
Max current load: 6A/CH x3 Max18A
Max output power: 216W/432W(12V/24V)
Scale levels: 4096×4096×4096
Control button: 8 Press buttons
Function Mode: 16 modes
Remote control distance: 100m
Radio Frequency Range: 433.92MHz
RF Remote Output Power: 8mW
working temperature: -30℃~55℃
Dimension: L211×W40×H30(mm)
Weight (G.W): 230g
This RF RGB controller is a multi-functional RGB LED controller, adopts advanced PWM(Pluse-Width Modulation)control technique, built-in 16 modes. Smooth changing effect,without flicker; With unique touch technique,the controller has 8 touch buttons,which are used for choosing ON/OFF,PAUSE,MODE+/-,SPEED+/-, BRT+/-,Also can use RF wireless remote for long distance control.The controller has ID learning function,which suitable for the remote control with same model but different coded address.It can automatically adapt to DC12-24V input,suitable for most conventional RGB LED products,such as LED strips, LED modules,etc.and all low-power RGB LED lights whose current is limited by resistors can be controlled.
