T3-CV 2.4G Wireless LED Receiver for T1/T2M/T3X Remote Control

Be the first to review this product

Availability: In stock

Regular Price: $72.00

Special Price $67.50

OR

Quick Overview

This T3-CV Receiver is an easy way to control single color, white adjustable, and RGB 12 or 24 volt DC LED strips or other RGB LEDs. Compatible with the T1, T2M, and T3X remotes, this receiver has a high pulse width modulation (PWM) frequency to reduce risk of flicker when using high frequency cameras.

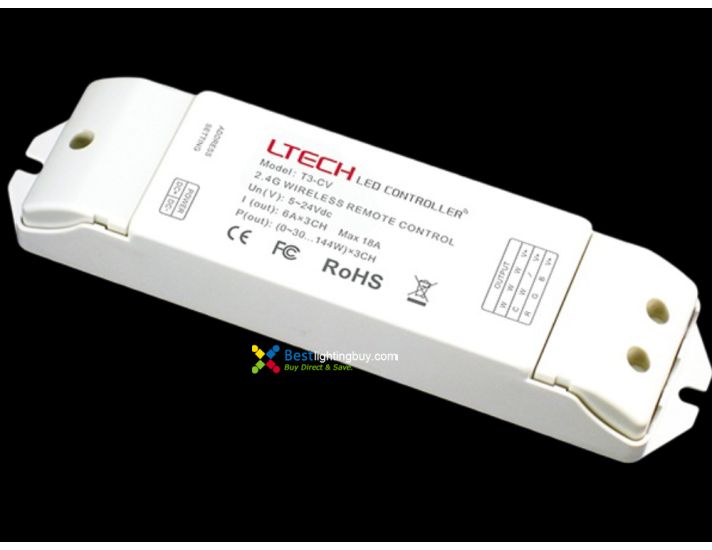

T3-CV 2.4G Wireless LED Receiver for T1/T2M/T3X Remote Control

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Input voltage: DC5V - DC24V
Max current load: 6A x 3CH, Max 18A
Max output power: 90W / 216W / 432W (5V / 12V / 24V)
Compatible remote control: T1 / T3 Remote Control
Sync quantity: No quantity limit
Working temperature: -30°C to 55°C
Dimension: L175 × W44 × H30mm

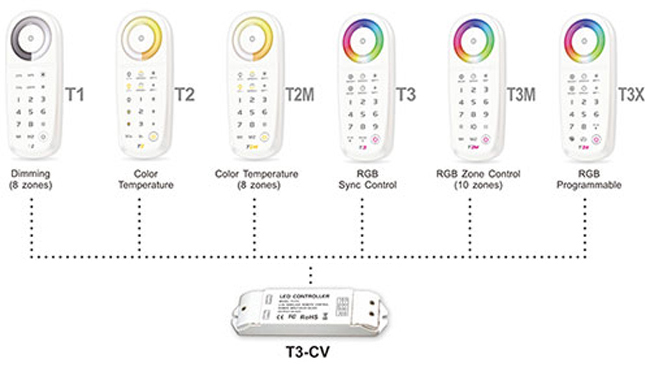

An almost limitless number of these 2.4GHZ Receiver units can be synchronised with our T1 Touch Dimmer, T2M Multi-Zone white adjustable touch Dimmer remote, or T3X programmable RGB LED touch controller remote. This enables you to create zones (maximum of 8) within your home or business and allow remote dimming of our single colour , white adjustable, or RGB LED strips, all from the palm of your hand!

It is also simple to synchronise this receiver / dimmer unit to the remote control. By simply holding down a zone number on the remote and by pressing the sync button on the receiver connects the two together.
