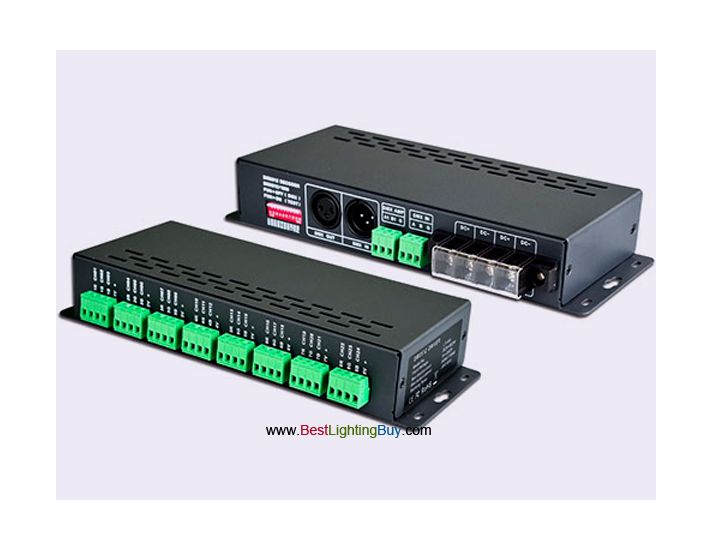

3A ×24CH DMX512 PWM RGB Decoder, DC5V~DC24V Input

Be the first to review this product

Availability: In stock

Regular Price: $233.00

Special Price $197.40

OR

Quick Overview

Input signal: DMX512
Input voltage: DC5V~DC24V
Max load current: 3A ×24CH Max 72A
Max output power: 360W/864W/1728W(5V/12V/24V)
Gray scale level: 256 levels/CH
DMX512 socket: XLR-3, Green terminal (with signal amplification function)
Dimming range: 0~100%


3A ×24CH DMX512 PWM RGB Decoder, DC5V~DC24V Input

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

This 3A ×24CH DMX512 PWM decoder works to convert universal DMX512/1990 digital signal to PWM signal to drive LED, Which controlled by DMX512 console, with 256 levels grey scale output per channel. Realize 0-100% brightness or various changing effect. And can control single color, RGB LED lights

Check the detailed manual of this 24CH DMX512 PWM Decoder
