HD107S RGB Addressable LED Strip, High PWM Frequency, 144/60/30 LEDs/m Density Available
HD107S IC embedded in SMD5050 white LED. each led is programmable.
Dual signal (Data,Clk) control
PWM refresh Rate 27KHZ and transmission rate 40MHZ
30leds/m, 60leds/m, 144leds/m density available.
Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
Buying in Bulk: We offer competitive prices and volume discounts for customers needing to order large quantities. If you are interested in ordering items in bulk, please get in contact with us.
- Buy 5 for $37.50 each and save 5%
- Buy 10 for $35.50 each and save 10%
- Buy 30 for $32.50 each and save 18%
IC Type: HD107S (HD107S datasheet)
Working voltage: 5V DC
Max. working current: around 60mA at full brightness
Emitting Color: RGB
Working temperature: -40 ℃ ~ 60 ℃
LED Density: 30/60/144 LEDs/m
Finish: White, Black optional
Rating: IP20 Nonwaterproof with 3M tape on the back), IP67 water resistant silicone tube
Strip Length: 1m reel for 144/m, 5m reel for 60/m and 30/m
beam angle: 120 degree
Lifespan: MTBF≥50000h
The HD107S chips are easier to control and offer faster (27kHz) PWM rates for flicker free performance.Each LED on the strip is 5050 size, and has an embedded microcontroller inside it which controls brightness levels, and interprets the data you send it. Each strip needs two wires to control all LEDs, one clock and one data. This arrangement makes it easier to use with slower devices like the Arduino Uno.
The HD107S is very similar to the SK9822/APA102, and it can be used as a drop-in replacement in most applications because it features the same interface and color order.
Various platforms offer support for this LED with libraries, the DotStar Arduino library and Raspberry Pi Python module from Adafruit should work with these strips. The FastLED Arduino library is another option that focuses on performance and provides advanced functionality like color correction.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Beam Angle | Watt/m |
| HD107SRGB-30-IP20 HD107SRGB-30-IP67 |
5000*10*2.5 5000*12*3.5 |
IP20 |
DC5V | SMD5050 RGB | HD107S Built-in |
30 | 30 | R:75lm G:150lm B:60lm Mix W:240lm |
120 | 9w |
| HD107SRGB-60-IP20 HD107SRGB-60-IP67 |
5000*12*2.5 5000*14*3.5 |
IP20 |
DC5V | SMD5050 RGB | HD107S Built-in |
60 | 60 | R:150lm G:300lm B:120lm Mix W:480lm |
120 | 18w |
| HD107SRGB-144-IP20 HD107SRGB-144-IP67 |
1000*12*2.5 1000*14*3.5 |
IP20 |
DC5V | SMD5050 RGB | HD107S Built-in |
144 | 144 | R:360lm G:720lm B:288lm Mix W:1150lm |
120 | 43.2w |
-
200/m 5mm APA102 Addressable RGB LED Strip, Black, DC5V, 1mSpecial Price $59.50 Regular Price $70.00 -
WS2815 Addressable RGB LED Strip, 12V Dual Signal Transmission, 144/60/30 LEDs/m Density AvailableSpecial Price $37.50 Regular Price $42.00 -
WS2813 Addressable RGB LED Strip, Dual Signal Transmission, DC5V, 144/60/30 LEDs/m Density AvailableSpecial Price $35.50 Regular Price $41.00 -

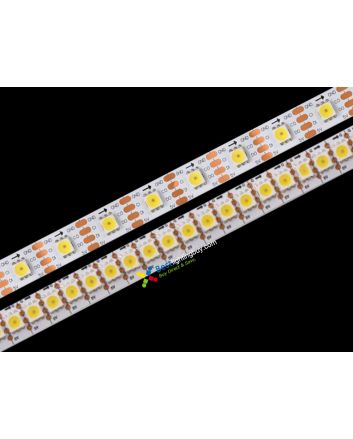

SK9822 White Addressable LED Strip, 144/60/30 LEDs/m Density AvailableSpecial Price $42.50 Regular Price $47.00 -

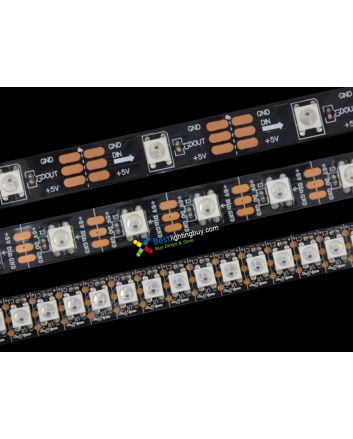

SK6812 Digital RGB Addressable LED Strip, DC5V, 144/60/30 LEDs/m Density AvailableSpecial Price $29.50 Regular Price $33.00 -

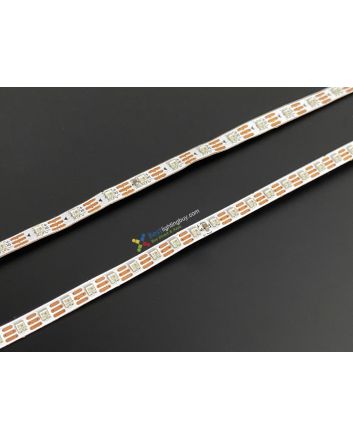

4mm Wide WS2812 2020 Addressable RGB LED Strip, 5V, 200/120/90 LEDs/m Density AvailableSpecial Price $19.50 Regular Price $25.00 -

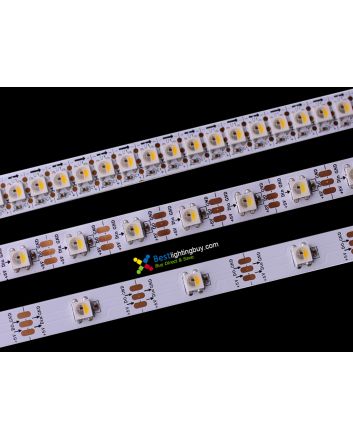

SK6812 RGBW Addressable LED Strip, DC5V, 144/60/30 LEDs/m Density AvailableSpecial Price $37.50 Regular Price $40.00 -
