8-port K-8000C Programmable RGB/RGBW Pixel SD Card LED Controller, 8192 Pixels, 5-24V DC
The K-8000C programmable RGB pixel SD card LED controller has 8 output ports and the max loading pixels of each port up to 1024 PCS. It supports various types of smart ICs, like WS2801, UCS1903, LPD6803, LPD1886, TM1913, etc, supports multiple points, line light sources, all kinds of rules, and specifically shaped handles. The K-8000C supports SD cards and has a capacity up to 32 GB. You can design and store the lighting effect in the card; the SD Card can store up to 32 files. The Pixel Controller can be used in single-use and multiple controller cascades. Cascade optical isolation mode: interference, better stability, cascade distance between two controllers can up to 150 meters, need to use 0.5㎡ pure copper power cord. The K8000C supports chip can lock or not lock the support IC in the software. You can select the type of IC through the physical button on the LED controller; this scheme is more flexible and convenient.
Model No.: K-8000C
Controllable: Can drive 8192 Pixels with 8 ports (1024Pixels/port)
Input Volage: DC 5-24V
Consumption: 5W
Dimension: 180 x 120 x 30(mm)
Supported driver chips: Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more
Support chips:
Single SPI: WS2811, WS2812, WS2813, WS2815, WS2818, SK6812, SM16703, TM1814, UCS1903, UCS2903, GS8205, SM16704, （Support up to 1024*8=8192 pixels）
Double Data: TM1914, TM1934, GS8206, （Support up to 1024*8=8192 pixels）
CLK & Data: WS2801, APA102, SK9822, APA107, SM16726, （Support up to 1024*8=8192 pixels）
DMX512: UCS512B3, UCS512C3, UCS512C4, SM16512, TM512AC, （Support up to 320*8=2560 pixels）
1) The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec,
2) The controller load lamps 768 point pixel speed can reach up to 25 frames / sec,
3) The controller load lamps 1024 point pixel speed is about 22 frames / sec
– The above parameter is an example of 1903 agreement IC, different IC have difference.
-
K-1000C SPI Programmable Pixel LED Controller with SD Card, 5-24V DCSpecial Price $59.50 Regular Price $78.00 -
,-5-24v-dc.jpg)

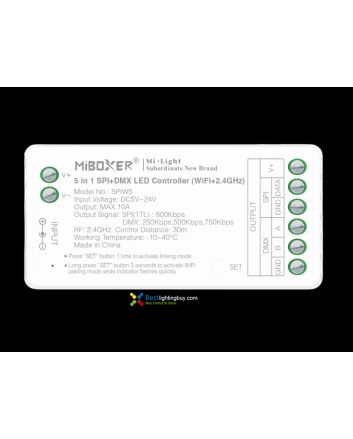

Miboxer SPIW5 5 in 1 SPI & DMX LED Controller (WiFi+2.4G), 5-24V DCSpecial Price $39.50 Regular Price $47.00 -
