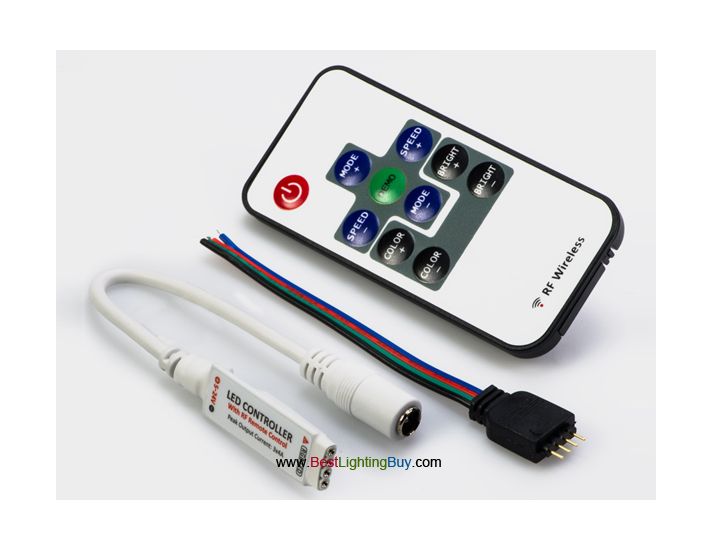

Mini RGB Controller with RF Remote, 4 Amps/Channel
Applications: Specific color selection or color change with speed control modes and dimming capabilities for accent lighting
Function: Dim and control 3 channel RGB LED products from 20~100% using PWM with RF remote control
Operating Voltage: 5~24 Volts DC
Connection Mode: Common anode (+)
Output: 3 channel RGB (4-pin port)
Maximum Load Current: 4 Amps/channel (12 Amps total)
Output Power: 144W @ 12V / 288W @ 24V
Overall Size: (L)42 x (W)12 x (H)3 mm
Control Method: RF Remote Control
Modes: 39 total (20 static and 19 dynamic)
Operating Temperature: -30~75°C
This is a Mini RGB controller with RF remote to control and dim any of our Red/Green/Blue (RGB) LED Light Bars and Light Strips. Several different static colors (including pure white) and dynamic color changing modes are selectable and adjustable using the remote controller.
Check the detailed manual of this Mini RGB controller with RF remote
Package Include:
1 x Mmini dimmer
1 x RF wireless remote
Mode List
| Static Colors: (Select "COLOR +/-") |
Dynamic Color Changing: (Select "MODE +/-") |
||
| 1. Blue | 11. Yellow | 1. Random (DEMO) | 11. Tri-color instant change |
| 2. Red | 12. Orange | 2. Tri-color crossfade | 12. Seven-color instant change |
| 3. Green | 13. Coral | 3. Tri-color crossfade | 13. Tri-color strobe |
| 4. Ultra-Violet Blue | 14. Magenta | 4. Seven-color crossfade | 14. Blue strobe |
| 5. Indigo | 15. Purple | 5. Blue fade in/out | 15. Magenta strobe |
| 6. Light Blue | 16. Warm White | 6. Magenta fade in/out | 16. Red strobe |
| 7. Sky Blue | 17. Pure White | 7. Red fade in/out | 17. Green strobe |
| 8. Cyan | 18. Pink | 8. Yellow fade in/out | 18. White strobe |
| 9. Aqua | 19. Super Cool White | 9. Green fade in/out | 19. Tri-color flickering strobe |
| 10. Lime Green | 20. Blue White | 10. White fade in/out | |
