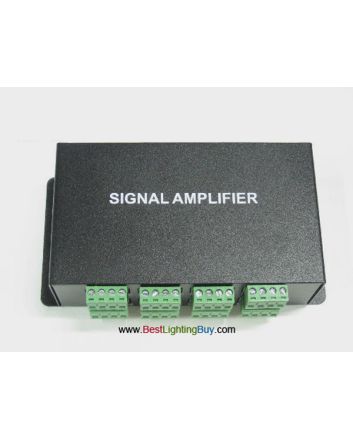

8 Output SPI LED Amplifier, 5V DC Input
Working temperature: -20-60℃
Supply voltage: DC5V
Output: 8 SPI signal
Connection mode: common anode
External dimension: L113ΧW49ΧH23mm
Packing size: L137ΧW60ΧH51mm
Net weight: 115g
Gross weight: 145g
Static power consumption: <1W
Check the detailed manual of this 5V 8 output SPI amplifier
Direction for Use
According to the silk-screen prompts on the panel of dream-color amplifier, to connect input and output signal wires in order,ensure short circuit can not occur between wires, then connect power with dream-color amplifier, actually use it with dream-color controller, please reference to the following typical application.
