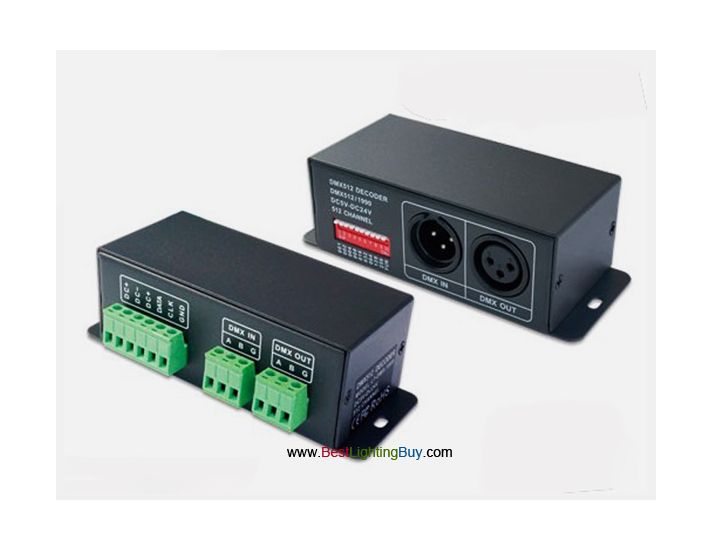

TM1809 DMX512 Signal Decoder, Support TM1803, TM1804, TM1809 and TM1812 Drving IC
Input voltage: DC5V～DC24V
Input signal: DMX512
Compatible IC: Tm1803, TM1804, TM1809 and TM1812 Driving IC
Decoder channels: 512 DMX CH/unit
DMX512 socket: XLR-3, Green terminal
Dimming range: 0~100%
This TM1809 DMX512 signal decoder works to convert universal DMX512 signal to SPI(TTL)signal. It can control LED lights based on Tm1803, TM1804, Tm1809, TM1812 via DMXconsole.Tm1803, TM1804, TM1809 and TM1812 are the IC with grey scale processor. It can support 256 scale levels and only need one signal cable, which convenient for design and installation for the LED lights. These 4 chips are widely used in LED digital lights among LED dot light, SMD strip, LED Fence tubes, LED wall light, LED pixel screen, LED Hi-Power spotlight , flood light, etc. The kernel of our LED controller adopt MCU from ATMEL to ensure this DMX decoder runs steady.
DMX-SPI signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.
Our DMX-SPI decoder can simply turn normal LED digital light to DMX512 LED light with international standard communication protocol, which is easy to promote in the international market.
Check the detailed manual of this TM1809 DMX-SPI Signal Decoder
