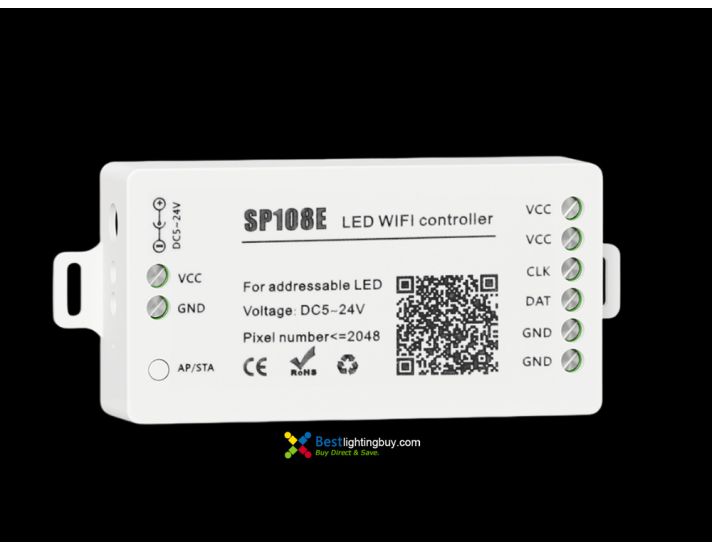

SP108E WIFI SPI LED Controller

SP108E WIFI SPI LED Controller

SKU
BLB10233

SP108E WIFI SPI LED Controller

Special Price $29.50 Regular Price $35.00
In stock
SKU
BLB10233
Overview

Long distance APP remote control viva WIFI
Support routing mode(AP) and LAN connection mode(STA), suitable for a variety of occasions to meet the different needs
Support almost every kind of one-wire or two-wire LED driver IC
Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns
Support setting pixel number and segments number, able to control up to 2048pixels

This controller supports many IC protocols.  They include WS2811, WS2812B, WS2801, SK6812, SK6812-RGBW, WS2813, SK9822, APA102, WS2818, LPD6803, LPD8806, TM1913, UCS1903, SM16703, DMX512. It will not work on standard RGB or RGBW flex.

It is pre-set with 180 different multi-colour dynamic modes and 8 kinds of single-colour modes. These include meteor, breathing, wave,chasing, stack, flash, flow and static modes. The colour, brightness and speed are all adjustable on the APP. Another nice feature is the image-to-effect function. It can capture the image’s colour and create distinctive colour effects that coordinate the light colour with your room’s atmosphere.

App control

IOS and Android OS versions are available(hardware should supportWIFI):

Search for ”LedShop”in App Store or Google play and istall the app

Connecting

AP(Access Point) mode: Controller and Phone connect directly, controller works as an access point. When the device is not connected to any WIFI network, power on the controller and wait for 20 seconds and the controller will switch into AP mode, in the WIFI setting page, find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),open the LED Shop App, then the controller will be showed on the device list

STA(Station) mode: Controller and phone are in one same WIFI network, in this network users can operate the controller smoothly. When the device is not connected to any WIFI network, make sure that your phone is connected to a WIFI network, power on the controller, controller will remain in "Wait-For-Connect" mode for 20 seconds, press the Add Device button, enter the WIFI pin code, then press OK to confirm and wait for a couple of moments. The user can select the controller and remove it fromf the network by pressing the Remove Device button, then the controller will switch into AP mode.

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

We found other products you might like!

  1. 8-Port SPI LED Amplifier, 12-24VDC
    Special Price $29.30 Regular Price $35.00

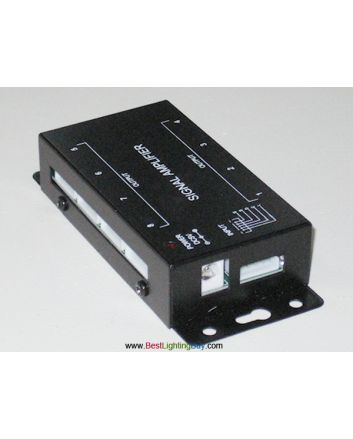

  2. 8 Output SPI LED Amplifier, 5V DC Input
