12 Channel DMX RDM to PWM Decoder, 4A/CH, XLR-5, RJ45, 12-24V DC
12 channels output, and Max. 4A current per channel, up to 1152W output power
3 button interface with OLED display for intuitive configuration
3 optional modes: single colour, colour temperature, and RGB
Supports 3 kinds of DMX ports with signal isolation function: 5-pinXLR, RJ45 and green terminal (with signal amplifier function)
Operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
Download User Manual
- Buy 5 for $109.50 each and save 8%
- Buy 10 for $105.50 each and save 12%
- Buy 30 for $99.50 each and save 17%
DMX decoder for low voltage circuits. With 12 output channels, this unit is ideal for controlling larger circuits of RGB, CT or single colour LED Strip. Fitted with OLED screen and touch buttons for easy setup.
This decoder also has the option to assign multiple channels to one address. Dimming curve options include; standard, linear, LOG, custom 0.1-9.9 dimming curve.
The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 12 channels. DMX connects via standard XLR-5, RJ45 plugs or screw terminals. The low voltage supply and lights connect via screw terminals on the side of the unit. A DMX signal amplifier is also built in to the unit.
The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
Specification
| Input signal | DMX512/RDM |
|---|---|
| Voltage | 12V~24V DC |
| Output | Constant Voltage |
| Channels | 12 |
| Current | 4A ×12CH Max 48A |
| Max output power | 576W/1152W(12V/24V) |
| Dimensions (mm) | 180L 122W 39H |
-
MEAN WELL LRS 12V Switching Power Supplies, 8.5A/12.5A/17A/29A/37.5A/50A AvailableSpecial Price $29.95 Regular Price $40.00 -

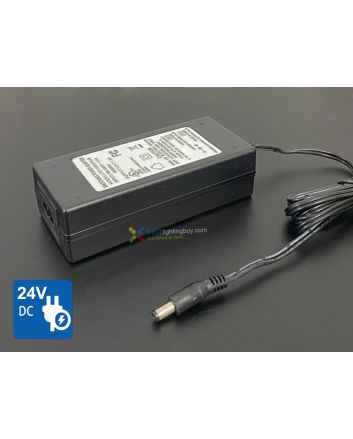

24V DC Desktop Power Adapter, 2.1/5.5mm Plug, 3A/4A/5A/6A AvailableSpecial Price $25.95 Regular Price $30.00 -
