32 Channel DMX RDM to PWM Decoder, 3A/CH, XLR-5, RJ45, 12-24V DC
32 channels output, and Max. 3A current per channel, up to 2304W output power
3 button interface with OLED display for intuitive configuration
4 optional modes: single colour, RGB, RGBW, RGBWY.
Supports 3 kinds of DMX ports with signal isolation function: 3-pinXLR, RJ45 and green terminal (with signal amplifier function)
Operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
Download User Manual
- Buy 5 for $249.50 each and save 4%
- Buy 10 for $235.50 each and save 9%
- Buy 30 for $229.50 each and save 12%
DMX decoder for low voltage circuits. With 32 output channels, this unit is ideal for controlling larger circuits of RGBW, RGB, CT, or single colour LED Strip. Fitted with OLED screen and touch buttons for easy setup.
This decoder also has the option to assign multiple channels to one address. Dimming curve options include; standard, linear, LOG, custom 0.1-9.9 dimming curve.
The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 32 channels. DMX connects via standard XLR-3, XLR-5, RJ45 plugs or screw terminals. The low voltage supply and lights connect via screw terminals on the side of the unit. A DMX signal amplifier is also built in to the unit.
The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
Specification
| Input signal | DMX512/RDM |
|---|---|
| Voltage | 12V~24V DC |
| Output | Constant Voltage |
| Channels | 32 |
| Current | 3A × 32CH Max 96A |
| Max output power | 1152W/2304W(12V/24V) |
| Dimensions (mm) | 300L 122W 39H |
-
-rgbw-flexible-led-strip,-96-led-m,-24v,-5m-reel.jpg)
4-in-1 (Quad Chip) RGBW Flexible LED Strip, 96 LED/M, 24V, 5M/ReelSpecial Price $89.50 Regular Price $105.00 -

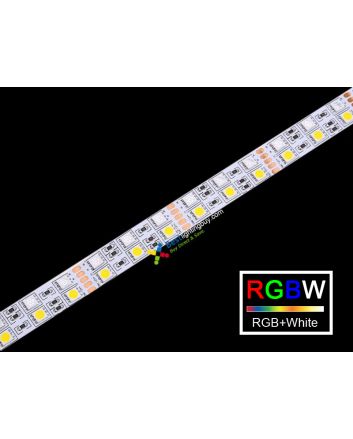

Double Row RGB+White 5050 SMD Flexible LED Strip, 120 LED/M, 12V/24V DC, 5mSpecial Price $149.50 Regular Price $170.00 -
5 Channel DMX RDM to PWM Decoder, 5A/CH, XLR-3, RJ45, 12-24V DCSpecial Price $89.00 Regular Price $100.00 -
3A ×24CH DMX512 PWM RGB Decoder, DC5V～DC24V InputSpecial Price $197.40 Regular Price $233.00 -

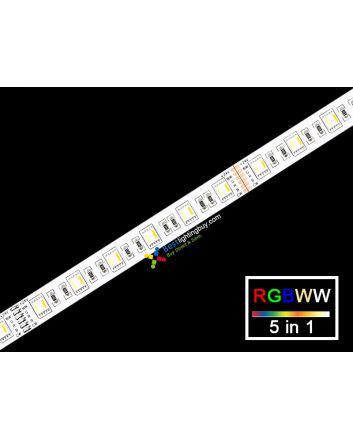

RGB+CCT 5-in-1 5050 SMD Flexible LED Strip, 60 LEDs/m, 24V, 5mSpecial Price $85.50 Regular Price $100.00 -
RGB + White 5050 SMD Flexible LED Strip Light, 60 LED/M, 24V DC, 5mSpecial Price $79.50 Regular Price $105.00 -
12 Channel DMX RDM to PWM Decoder, 4A/CH, XLR-5, RJ45, 12-24V DCSpecial Price $119.50 Regular Price $135.00 -

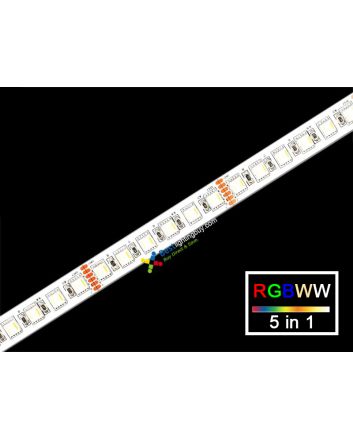

RGB+CCT 5-in-1 5050 SMD Flexible LED Strip, 96 LEDs/m, 24V, 5mSpecial Price $95.50 Regular Price $125.00 -
16 Channel DMX RDM to PWM Decoder, 3A/CH, XLR-5, RJ45, 12-24V DCSpecial Price $139.50 Regular Price $155.00 -

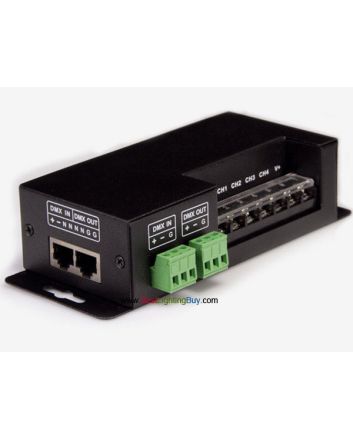

4 Channel DMX512 Decoder for RGBW LED Light, 5A/CH OutputSpecial Price $63.30 Regular Price $74.00
